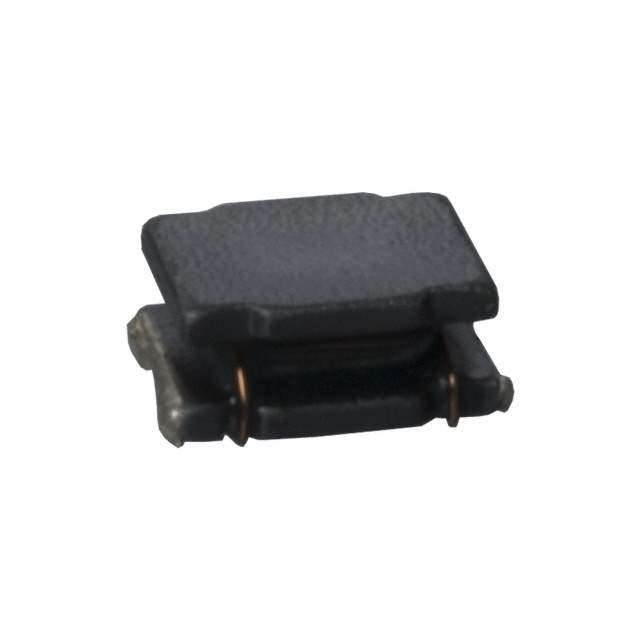

LQH2MCN8R2M02L Real Image
Same model may have multiple batches, images only for reference.

LQH2MCN8R2M02L

Part No LQH2MCN8R2M02L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 8.2UH 235MA 1.43 OHM
Datasheet
LQH2MCN8R2M02L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 8.2μH
Tolerance ±20%
Current Rating 235mA
DC Resistance (DCR) 1.43 Ohm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.037" (0.95mm)
Win Source Part Number 103487-LQH2MCN8R2M02L
Ultra Librarian 3D Model Ultra Librarian LQH2MCN8R2M02L CAD Model

Description

The Murata Electronics North America LQH2MCN8R2M02L is a wirewound inductor with the following specifications:

  • Inductance: 8.2μH
  • Current Rating: 235mA
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Self-Resonant Frequency: 50MHz
  • Test Frequency: 1MHz
  • Operating Temperature Range: -40°C to 85°C
  • Package: 0806 (2016 Metric)
  • Mounting Type: SMD (SMT)
  • Height: 0.037" (0.95mm)
  • Category: Inductors, Coils, Chokes
  • Status: Active
