Same model may have multiple batches, images only for reference.

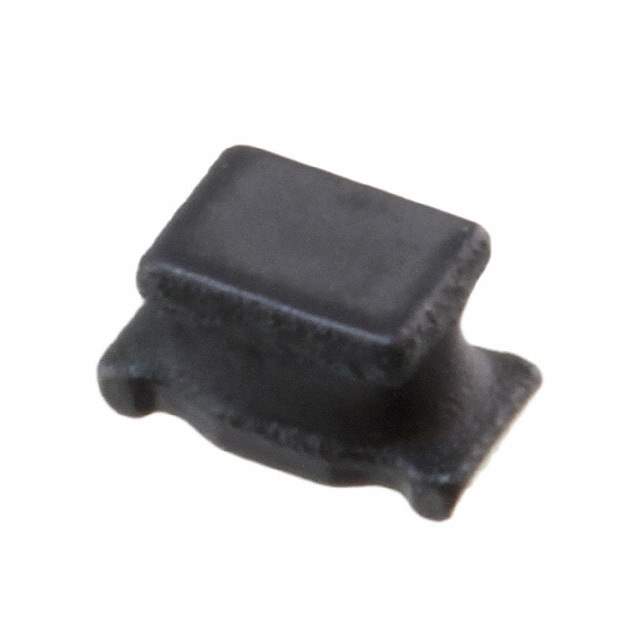

LQH31CNR22M03L Real Image
Same model may have multiple batches, images only for reference.

LQH31CNR22M03L

Part No LQH31CNR22M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 220NH 850MA 100 MOHM
Datasheet
LQH31CNR22M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 220nH
Tolerance ±20%
Current Rating 850mA
DC Resistance (DCR) 140 mOhm Max
Frequency - Self Resonant 250MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1206
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1057147-LQH31CNR22M03L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQH31CNR22M03L CAD Model

Description

The Murata Electronics North America 470153 is a wirewound inductor with a current rating of 850mA and an inductance of 220nH.

  • Current Rating: 850mA
  • Inductance: 220nH
  • Core Material: ferrite
  • Tolerance: ±20%
  • Mounting: SMD (SMT) technology
  • Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 140 mOhm Max
  • Frequency Range: 1MHz to 250MHz
  • Package: 1206
  • Production Status: active
