Same model may have multiple batches, images only for reference.

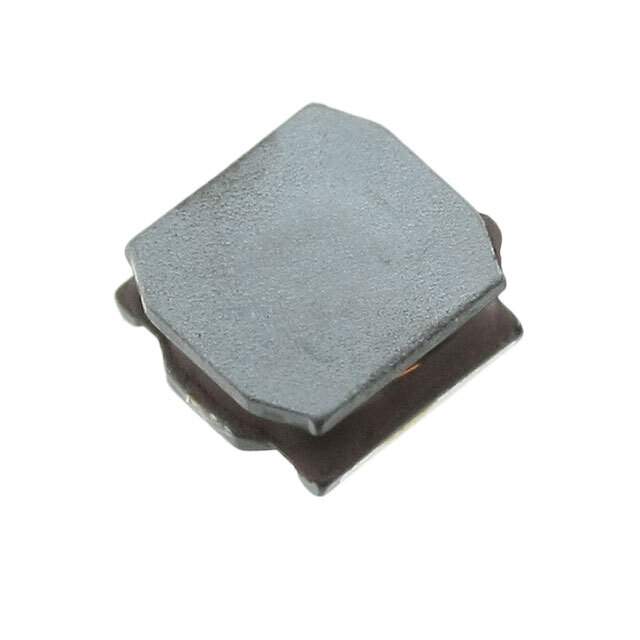

LQH44PN100MP0L Real Image
Same model may have multiple batches, images only for reference.

LQH44PN100MP0L

Part No LQH44PN100MP0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Shielded Wirewound 10uH 20% 1MHz Ferrite 1.17A 0.192Ohm DCR 1515 T/R / FIXED IND 10UH 1.17A 160 MOHM
Datasheet
LQH44PN100MP0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 1.17A
Current - Saturation 1.15A
DC Resistance (DCR) 192 mOhm Max
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1515
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 072037-LQH44PN100MP0L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LQH44PN_P0
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LQH44PN100MP0L CAD Model

Description

The Murata Electronics North America wirewound inductor is an ideal component for various electronic applications.

  • Current Rating: 1.17A
  • Inductance: 10u00B5H
  • Material: Ferrite Core
  • Tolerance: ±20%
  • Self-Resonant Frequency: 25MHz
  • Test Frequency: 1MHz
  • DC Resistance (DCR): 192 mOhm Max
  • Operating Temperature Range: -40°C to 85°C
  • Height Seated (Max): 0.071" (1.80mm)
  • Mounting Type: SMD (SMT)
  • Category: Inductors, Coils, Chokes
  • Status: Active in the market
