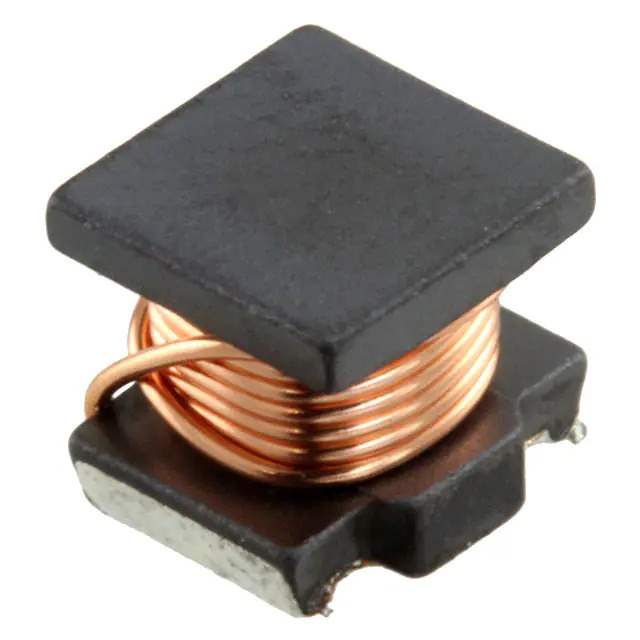

LQH55DN331M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN331M03L

Part No LQH55DN331M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 330UH 270MA 6.16OHM SM
Datasheet
LQH55DN331M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics North America
Series LQH55
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 270 mA
Shielding Unshielded
DC Resistance (DCR) 6.16Ohm Max
Frequency - Self Resonant 3.1MHz
Temperature Range - Operating -40°C ~ 80°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric)
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number LQH55DN
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 878090-LQH55DN331M03L
Ultra Librarian 3D Model Ultra Librarian LQH55DN331M03L CAD Model

Description

The LQH55DN331M03L is a drum core, wirewound inductor from the LQH55 series by Murata Electronics.

  • Mounting: Surface Mount
  • Size: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Inductance: 330 μH
  • Tolerance: ±20%
  • Height: 0.197" (5.00mm)
  • DC Resistance: 6.16 Ohm
  • Material: Ferrite
  • Operating Temperature: -40°C to 80°C
  • Current Rating: 270 mA
  • Package: Tape & Reel
  • Standard Package Quantity: 350 pcs
  • Status: Active
