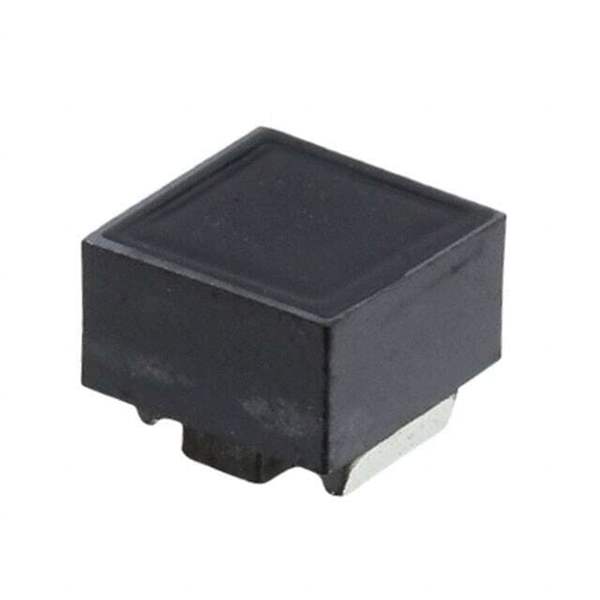

LQH66SN100M03L
Same model may have multiple batches, images only for reference.

LQH66SN100M03L

Part No LQH66SN100M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 10UH 1.6A 50.4MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics North America
Series LQH66
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Shielding Shielded
DC Resistance (DCR) 50.4mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 80°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2525 (6363 Metric)
Size / Dimension 0.248" L x 0.248" W (6.30mm x 6.30mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number LQH66SN
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 847536-LQH66SN100M03L
Ultra Librarian 3D Model Ultra Librarian LQH66SN100M03L CAD Model

Description

The LQH66SN100M03L is a drum core, wirewound inductor from Murata Electronics.

  • Series: LQH66
  • Size: 0.248" L x 0.248" W (6.30mm x 6.30mm)
  • Inductance: 10 μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Package: Nonstandard
  • Seated Height: 0.197" (5.00mm) max
  • DCR: 50.4mOhm max
  • Current Rating: 1.6 A
  • Operating Temperature: -40°C to 80°C
  • Mounting: Surface Mount
