Same model may have multiple batches, images only for reference.

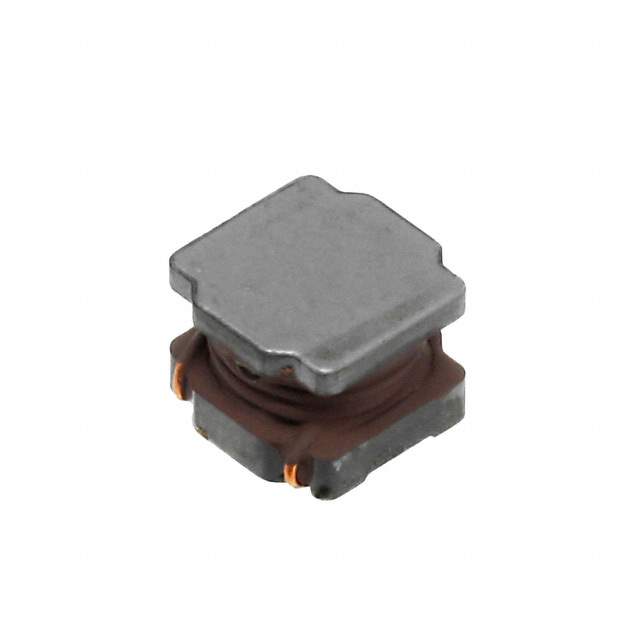

LQH6PPN4R7M43L Real Image
Same model may have multiple batches, images only for reference.

LQH6PPN4R7M43L

Part No LQH6PPN4R7M43L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3.2A 20 MOHM SMD
Datasheet
LQH6PPN4R7M43L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 4.7μH
Tolerance ±20%
Current Rating 3.2A
Current - Saturation 4A
DC Resistance (DCR) 20 mOhm
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 132284-LQH6PPN4R7M43L
Ultra Librarian 3D Model Ultra Librarian LQH6PPN4R7M43L CAD Model

Description

The LQH6PPN4R7M43L is a wirewound type inductor designed by Murata Electronics North America.

  • Current Rating: 3.2A
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Saturation Current: 4A
  • Status: Obsolete (EOL)
  • Temperature Range: -40°C to 85°C
  • Applications: High-frequency performance
