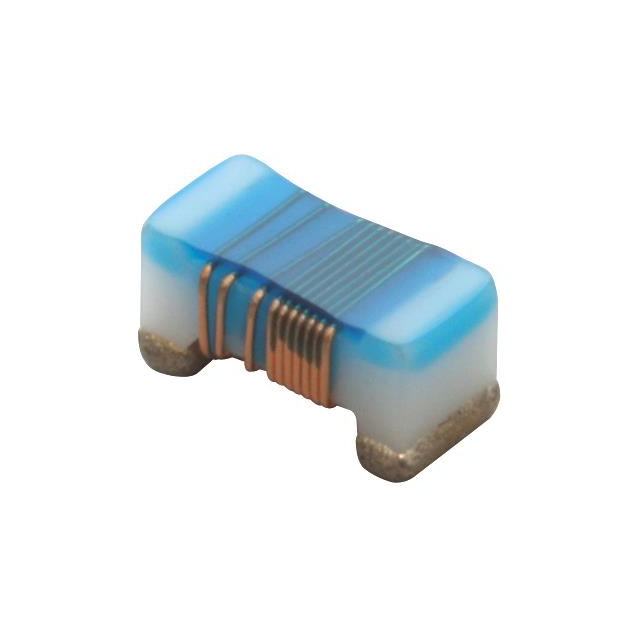

LQW18AN56NG80D Real Image
Same model may have multiple batches, images only for reference.

LQW18AN56NG80D

Part No LQW18AN56NG80D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 56NH 770MA 260MOHM SMD / 56 nH Unshielded Wirewound Inductor 770 mA 260mOhm Max 0603 (1608 Metric)
Datasheet
LQW18AN56NG80D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQW18
Package Tape & Reel
Type Wirewound
Inductance 56 nH
Tolerance ±2%
Current Rating (Amps) 770 mA
Shielding Unshielded
DC Resistance (DCR) 260mOhm Max
Q @ Freq 38 @ 200MHz
Frequency - Self Resonant 2.6GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQW18AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-18135-6,490-18135-2,LQW18AN56NG80D-ND,490-18135-1
Standard Package 4,000
Win Source Part Number 1146712-LQW18AN56NG80D
Ultra Librarian 3D Model Ultra Librarian LQW18AN56NG80D CAD Model

Description

The Murata Electronics LQW18AN56NG80D is a wirewound inductor with an inductance of 56 nH and a tolerance of ±2%.

  • Inductance: 56 nH
  • Tolerance: ±2%
  • DC Resistance: 260mOhm Max
  • Q @ Freq: 38 @ 200MHz
  • Mounting Type: Surface Mount
  • Package/Case Size: 0603 (1608 Metric)
  • Standard Package: 4,000
  • Temperature Range: -55°C to 125°C
  • Frequency Self-Resonant: 2.6GHz
