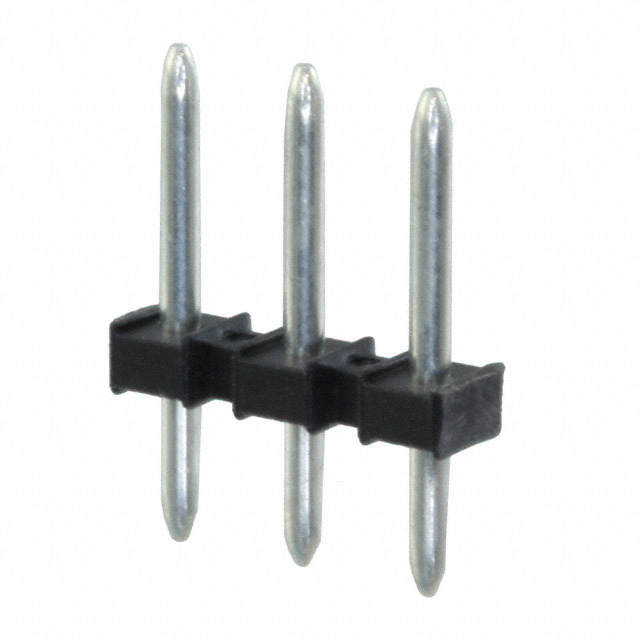

Same model may have multiple batches, images only for reference.
31224103 METZ CONNECT USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

31224103

Part No 31224103
Manufacturer METZ CONNECT USA Inc.
Catalog Headers, Plugs and Sockets
Description PIN HEADER, VERTICAL, THR, PCB,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsTerminal BlocksHeaders, Plugs and Sockets
Manufacturer METZ CONNECT USA Inc.
Packaging Bulk
Part Status Active
Type Header, Male Pins, Unshrouded
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - UL 15 A
Voltage - UL 300 V
Color Black
Operating Temperature -40°C ~ 105°C
Contact Mating Finish Silver
Material Flammability Rating UL94 V-0
Contact Material Copper Zinc
Housing Material Polyamide (PA46), Nylon 4/6
Contact Tail Length 0.142" (3.60mm)
Insulation Height 0.073" (1.85mm)
Ultra Librarian 3D Model Ultra Librarian 31224103 CAD Model
