Same model may have multiple batches, images only for reference.

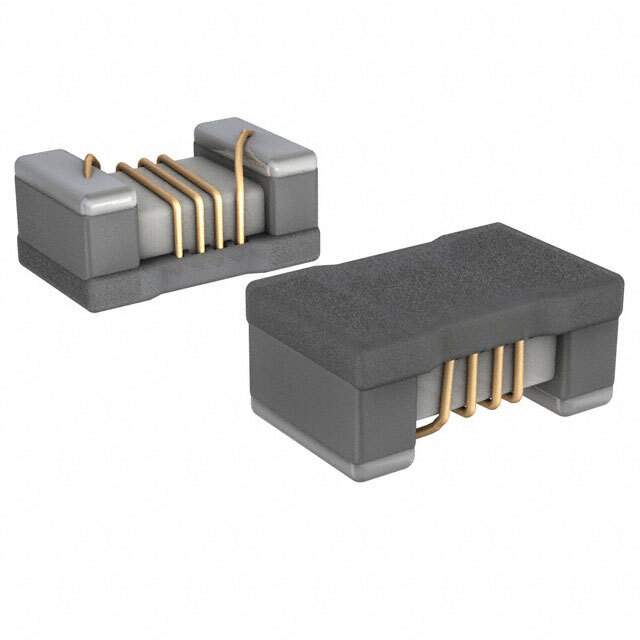

LQW21HN1R5J00L Real Image
Same model may have multiple batches, images only for reference.

LQW21HN1R5J00L

Part No LQW21HN1R5J00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1.5UH 85MA 5.33 OHM / Inductor RF Chip Wirewound 1.5uH 5% 10MHz 35Q-Factor Ferrite 0.085A 5.33Ohm DCR 0805 T/R
Datasheet
LQW21HN1R5J00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQW21
Packaging Reel package
Type Wirewound
Inductance 1.5μH
Tolerance ±5%
Current Rating 85mA
Shielding Unshielded
DC Resistance (DCR) 5.33 Ohm Max
Q @ Freq 35 @ 100MHz
Frequency - Self Resonant 350MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 10MHz
Mounting SMD
Package 0805
Manufacturer Package 0805
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 780067-LQW21HN1R5J00L
Popularity Medium
Supply and Demand Status Balance
Family Name LQW21HN_00
Introduction Date August 21, 2007
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQW21HN1R5J00L CAD Model

Description

This Murata Electronics North America manufactured electronic component is a medium popularity product in the market and is commonly used.

  • Inductance: 1.5μH
  • Current Rating: 85mA
  • Tolerance: ±5%
  • DC Resistance (DCR): 5.33 Ohm Max
  • Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.039" (1.00mm)
