Same model may have multiple batches, images only for reference.

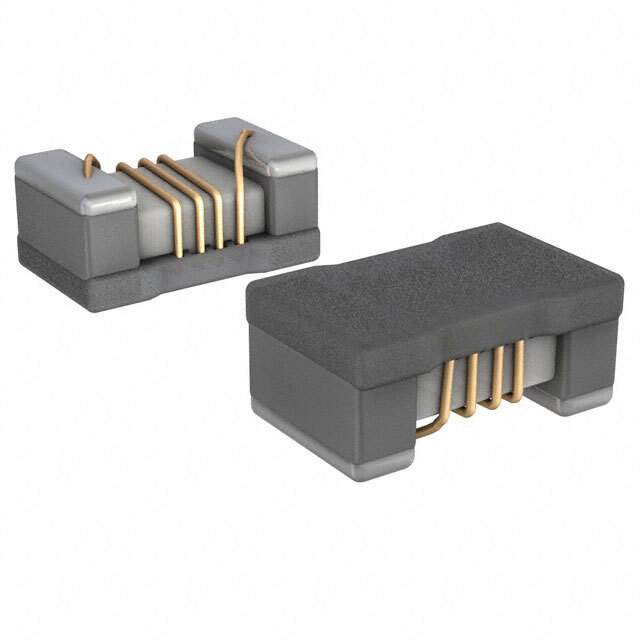

LQW21HNR82J00L Real Image
Same model may have multiple batches, images only for reference.

LQW21HNR82J00L

Part No LQW21HNR82J00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 820NH 125MA 2.34 OHM
Datasheet
LQW21HNR82J00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 820nH
Tolerance ±5%
Current Rating 125mA
DC Resistance (DCR) 2.34 Ohm Max
Q @ Freq 35 @ 100MHz
Frequency - Self Resonant 480MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1057453-LQW21HNR82J00L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LQW21HNR82J00L CAD Model

Description

The Murata Electronics North America 1057453-LQW21HNR82J00L is a wirewound type inductor with a current rating of 125mA.

  • Inductance: 820nH
  • Tolerance: ±5%
  • Q @ Freq: 35 @ 100MHz
  • Self-Resonant Frequency: 480MHz
  • Packaging: 0805 (2012 Metric)
  • Maximum Height: 0.039" (1.00mm)
