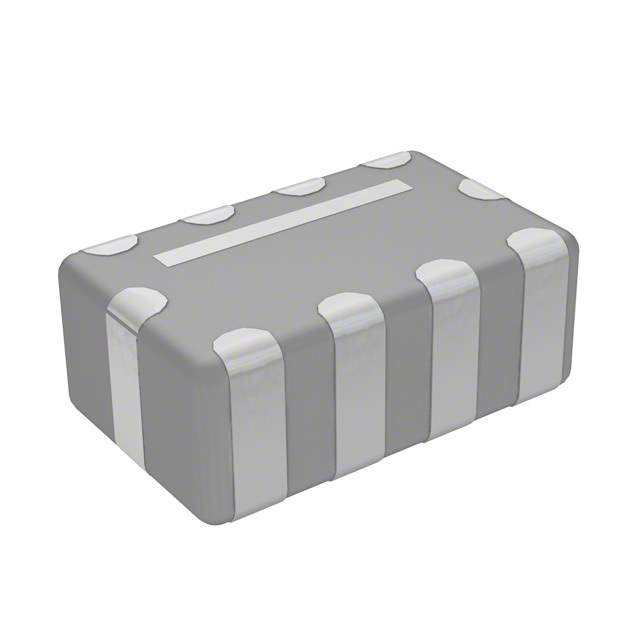

Same model may have multiple batches, images only for reference.

NFA21SL506X1A48L

Part No NFA21SL506X1A48L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI Filter LC-Circuit 0.02A 10VDC Flat Style SMD T/R / FILTER LC 50MHZ SMD
Datasheet
NFA21SL506X1A48L Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $0.3826 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
90+
$0.5820
$52.380
210+
$0.4780
$100.380
325+
$0.4630
$150.475
450+
$0.4480
$201.600
580+
$0.4330
$251.140
775+
$0.3880
$300.700
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 2,500 pieces
MOQ: 90 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate
*

Products specifications

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 50MHz (Cutoff)
Attenuation Value 30dB @ 500MHz
Current 20mA
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.037" (0.95mm)
Win Source Part Number 041910-NFA21SL506X1A48L
Is this a common-used part? Yes
Popularity High
Fake Threat In the Open Market 91 pct.
Supply and Demand Status Balance
Family Name NFA21SL_X
Introduction Date May 06, 2005
ECCN EAR99
Estimated EOL Date 2028
Alternative Parts
(Cross-Reference) 		NFA21SL506X1A48B;

Description

The Murata Electronics North America NFA21SL506X1A48L is a low pass filter that has a voltage rating of 10V. This product has a high popularity and a 91% fake threat in the open market. The supply and demand status of this product is balanced. This component is manufactured by Murata Electronics North America and is available with Win Source Part Number 041910-NFA21SL506X1A48L. It is an LC technology filter that has 4 channels and can handle a current of 20mA. The attenuation value of this component is 30dB @ 500MHz and it has a cutoff frequency of 50MHz. The temperature range for this component is -55°C to 125°C.
