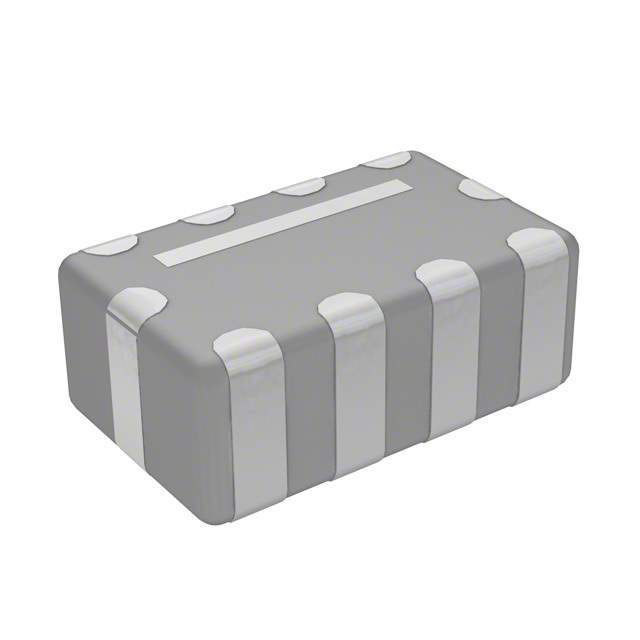

NFA21SL806X1A48L Real Image
Same model may have multiple batches, images only for reference.

NFA21SL806X1A48L

Part No NFA21SL806X1A48L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 80MHZ SMD
Datasheet
NFA21SL806X1A48L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 80MHz (Cutoff)
Attenuation Value 25dB @ 500MHz
Current 20mA
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.037" (0.95mm)
Win Source Part Number 025214-NFA21SL806X1A48L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NFA21SL806X1A48L CAD Model

Description

The NFA21SL806X1A48L is a low pass filter manufactured by Murata Electronics North America.

  • Popularity: Medium
  • Supply and Demand: Sufficient
  • Application: Data lines for mobile devices
