Same model may have multiple batches, images only for reference.

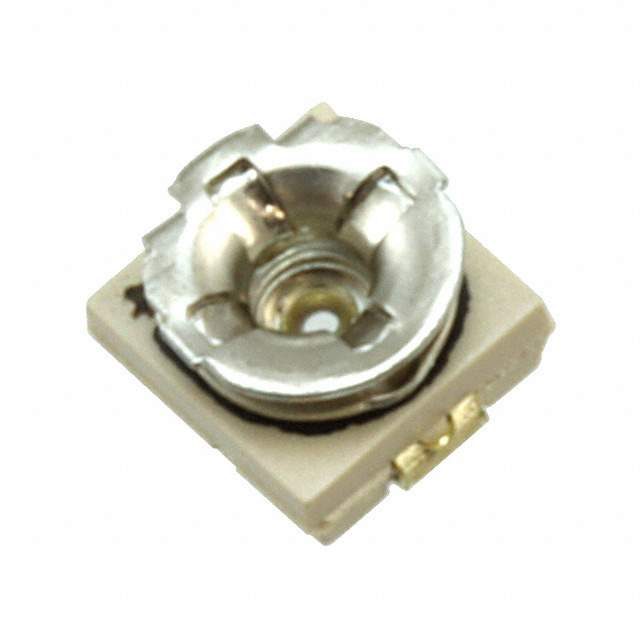

PVZ3A502C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVZ3A502C01R00

Part No PVZ3A502C01R00
Manufacturer Murata Electronics North America
Catalog Trimmer Potentiometers
Description 5k Ohm 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Carbon 1 Turn Top Adjustment
Datasheet
PVZ3A502C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers,Variable Resistors
Family Trimmer Potentiometers
Manufacturer Bourns Inc.
Series PVZ3
Packaging Reel
Resistance (Ohms) 5k
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting Style SMD/SMT
Termination Style J Lead
Size / Dimension Square - 0.126" x 0.122" Face x 0.073" H (3.20mm x 3.10mm x 1.85mm)
Win Source Part Number 103268-PVZ3A502C01R00
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian PVZ3A502C01R00 CAD Model

Description

The Bourns Inc. 103268-PVZ3A502C01R00 is a trimmer potentiometer that is designed for use in a variety of electronic devices.

  • Manufacturer: Bourns Inc.
  • Adjustment: top
  • Resistive Material: carbon
