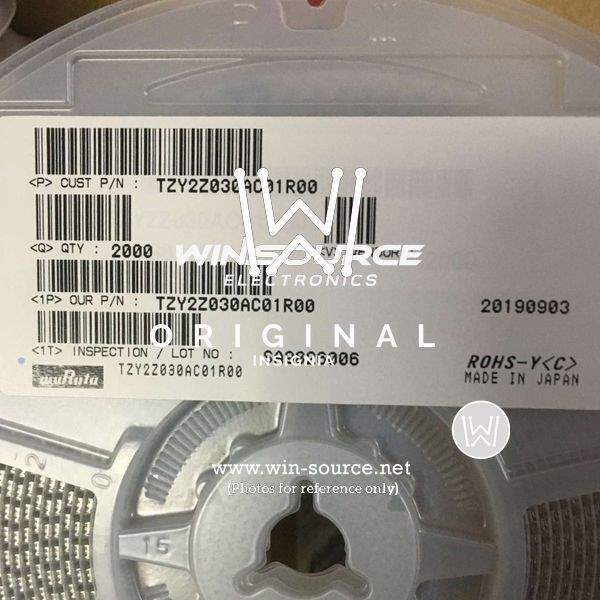

TZY2Z030AC01R00 Real Image TZY2Z030AC01R00 label picture
Same model may have multiple batches, images only for reference.
TZY2Z030AC01R00 Real Image TZY2Z030AC01R00 label picture
TZY2Z030AC01R00 Real Image TZY2Z030AC01R00 label picture
Same model may have multiple batches, images only for reference.

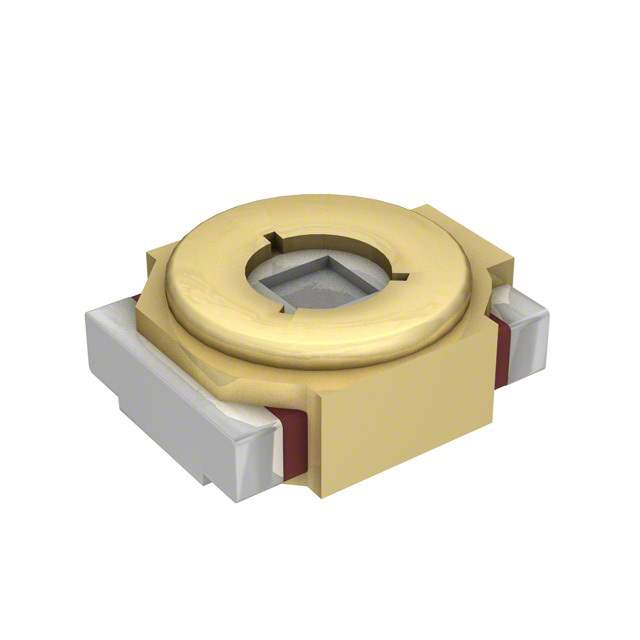

TZY2Z030AC01R00

Part No TZY2Z030AC01R00
Manufacturer Murata Electronics North America
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 1.5-3PF 25V SMD / New shape of cover can improve the flux invasion compared with current products
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Part Status Obsolete (End Of Life)
Capacitance Range 1.5 ~ 3pF
Adjustment Type Top
Voltage - Rated 25V
Dielectric Material Ceramic
Q at Freq 300 at 1MHz
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.049"
Temperature Range - Operating -25°C ~ 85°C
Mounting Style SMD
Features General Purpose
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800711-TZY2Z030AC01R00
Ultra Librarian 3D Model Ultra Librarian TZY2Z030AC01R00 CAD Model

Description

The Murata Electronics capacitor is a general-purpose ceramic capacitor.

  • Capacitance: 1.5 ~ 3pF
  • Voltage Rating: 25V
  • Dielectric Material: Ceramic
  • Adjustment Type: Top
  • Packaging: Reel
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Seated Height: 0.049"
  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
  • Q @ Freq: 300 @ 1MHz
  • Status: Obsolete (End of Life)
