Same model may have multiple batches, images only for reference.

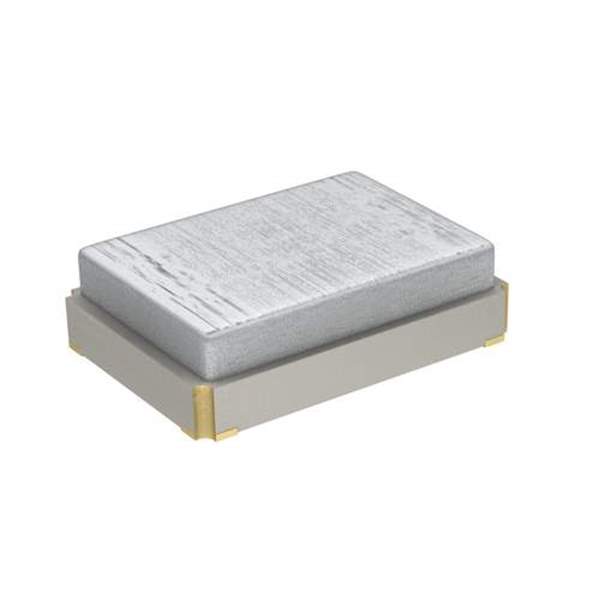

XRCGB24M000F3A00R0 Real Image
Same model may have multiple batches, images only for reference.

XRCGB24M000F3A00R0

Part No XRCGB24M000F3A00R0
Manufacturer Murata Electronics North America
Catalog Crystals
Description CRYSTAL 24.0000MHZ 6PF SMD / 24 MHz ±30ppm Crystal 6pF 120 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Murata Electronics
Series XRCGB
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±35ppm
Frequency Tolerance ±30ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 120 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number XRCGB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 490-12145-2,490-12145-1,490-12145-6
Standard Package 3,000
Win Source Part Number 1019357-XRCGB24M000F3A00R0
Ultra Librarian 3D Model Ultra Librarian XRCGB24M000F3A00R0 CAD Model

Description

The XRCGB series crystal from Murata Electronics is a MHz crystal that operates at a frequency of 24 MHz.

  • Series: XRCGB
  • Frequency: 24 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±35ppm
  • ESR: 120 Ohms
  • Load Capacitance: 6pF
  • AEC-Q200 Rated: Yes
  • Packaging: tape and reel
  • Package/Case: 4-SMD, no lead
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.028" (0.70mm)
  • Mounting: surface mountable
  • Operating Temperature Range: -40°C to 125°C
