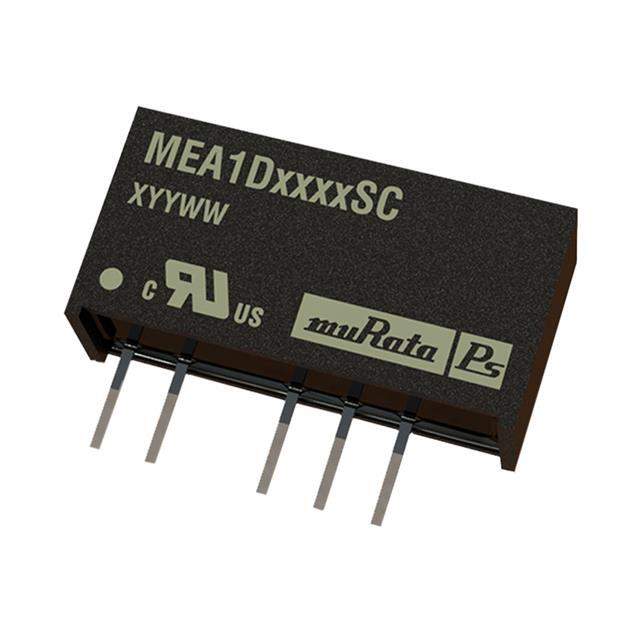

MEA1D2415SC

Part No MEA1D2415SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Dual Output DC/DC Converters | DC DC CONVERTER +/-15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 21.6V
Voltage - Input (Maximum) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 33mA, 33mA
Power (W) 1W
Voltage - Isolation 1kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88.5%
Mounting Style Through Hole
Manufacturer Package 7-SIP Module, 5 Leads
Parts Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221696-MEA1D2415SC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEA1D2415SC CAD Model

Description

MEA1D2415SC from Murata Power Solutions Inc. is a board-mount DC-DC converter used where designers need compact, isolated power conversion directly on a PCB. Components in this category are commonly selected for industrial controls, telecom equipment, embedded systems, instrumentation, and distributed power architectures that require reliable point-of-load conversion and simplified board integration. Murata Power Solutions is widely recognized for power products used in demanding electronic designs, making this part relevant for engineers balancing footprint, power integrity, and sourcing confidence. The current lifecycle status for MEA1D2415SC is information not available, so teams should confirm ongoing production support before locking it into new designs or long-term service programs. RoHS compliance information is also not available from the provided input and should be verified through the latest manufacturer datasheet, declaration, or authorized distributor documentation. For procurement-sensitive projects, validating lifecycle, compliance, and stock availability early can reduce redesign risk and support smoother qualification planning.
