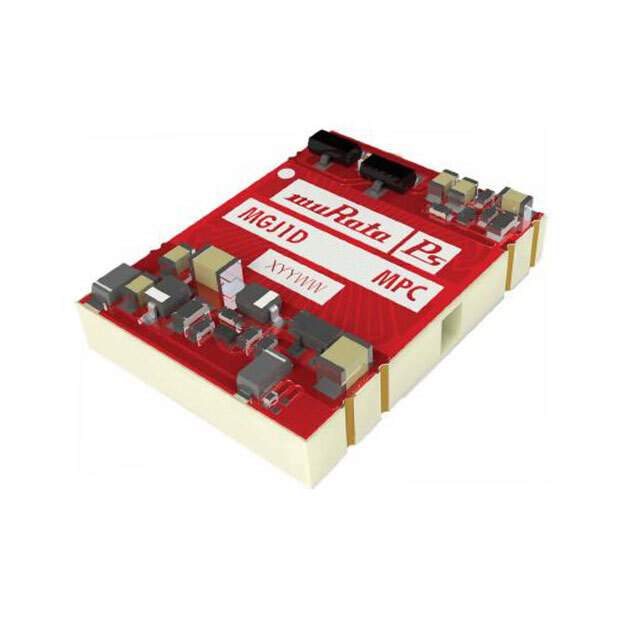

MGJ1D241505MPC-R7 Real Image
Same model may have multiple batches, images only for reference.

MGJ1D241505MPC-R7

Part No MGJ1D241505MPC-R7
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V -5V 1W / Isolated Module DC DC Converter 2 Output 15V -5V 50mA, 50mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MGJ1 (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -5V
Current - Output (Max) 50mA, 50mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial) , Medical
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 64%
Mounting Type Surface Mount
Package / Case 8-SMD Module
Size / Dimension 0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm)
Base Product Number MGJ1D24
Standard Package 80
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339896-MGJ1D241505MPC-R7
Ultra Librarian 3D Model Ultra Librarian MGJ1D241505MPC-R7 CAD Model

Description

The Murata Power Solutions Inc. MGJ1D241505MPC-R7 is an isolated module that is perfect for power supplies - board mount - DC DC converters.

  • Features: SCP
  • Packaging: Tape and Reel
  • Size / Dimension: 0.78" L x 0.59" W x 0.17" H (19.7mm x 15.0mm x 4.4mm)
  • Application: ITE (Commercial) and Medical
  • Standard Package: 80
  • Power (Watts): 1 W
  • Number of Outputs: 2
  • Current - Output 1 (Max): 50mA
  • Current - Output 2 (Max): 50mA
  • Voltage - Input: 21.6V to 26.4V
  • Voltage - Output 1: 15V
  • Voltage - Output 2: -5V
  • Efficiency: 64%
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD Module
  • Operating Temperature: -40°C to 105°C
  • MSL Level: 2 (1 Year)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.40.9580
  • Base Product Number: MGJ1
