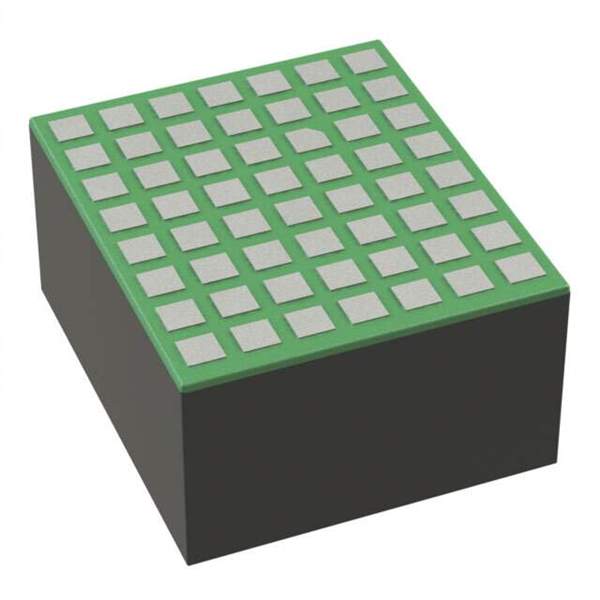

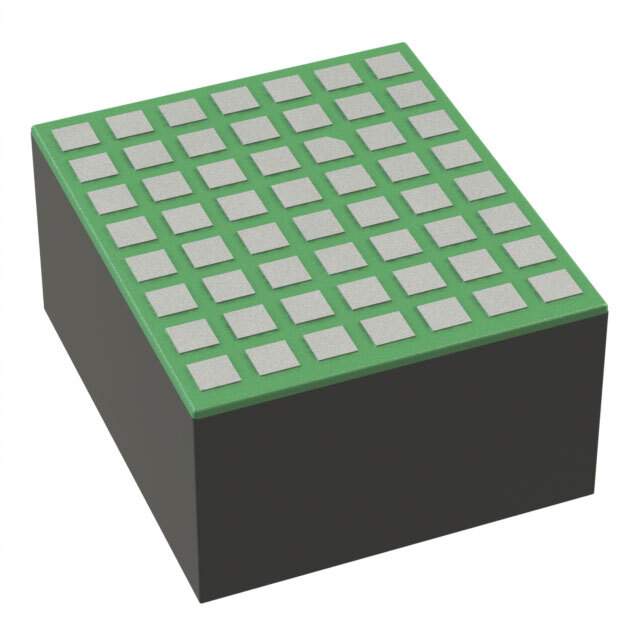

Same model may have multiple batches, images only for reference.

MYMGM1R816ELA5RA

Name: MYMGM1R816ELA5RA
Brand: Murata Power Solutions Inc.
SKU: 1345624
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MYMGM1R816ELA5RA
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.7-1.8V 29W / Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.8V 16A 7.5V - 15V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Package	Tape & Reel
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	7.5V
Voltage - Input (Max)	15V
Voltage - Output 1	0.7 ~ 1.8V
Current - Output (Max)	16A
Power (Watts)	29 W
Applications	ITE (Commercial)
Features	Adjustable Output, Remote On/Off, Remote Sense
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	91.8%
Mounting Type	Surface Mount
Package / Case	56-SMD Module
Size / Dimension	0.41" L x 0.35" W x 0.20" H (10.5mm x 9.0mm x 5.0mm)
Control Features	Enable, Active High
Base Product Number	MYMGM1
Standard Package	400
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1345624-MYMGM1R816ELA5RA
Ultra Librarian 3D Model	Ultra Librarian MYMGM1R816ELA5RA CAD Model

Alternative Products

Description

The Murata Power Solutions MYMGM1R816ELA5RA is a non-isolated PoL module that is widely used in power supplies for board mount DC to DC converters.

Type: Non-Isolated PoL Module
Features: Adjustable Output, Remote On/Off, Remote Sense
Packaging: Tape & Reel
Size: 0.41" L x 0.35" W x 0.20" H (10.5mm x 9.0mm x 5.0mm)
Application: ITE (Commercial)
Power: 29W
Efficiency: 91.8%
Temperature Range: -40°C to 105°C (with derating)
ECCN: EAR99
