Same model may have multiple batches, images only for reference.

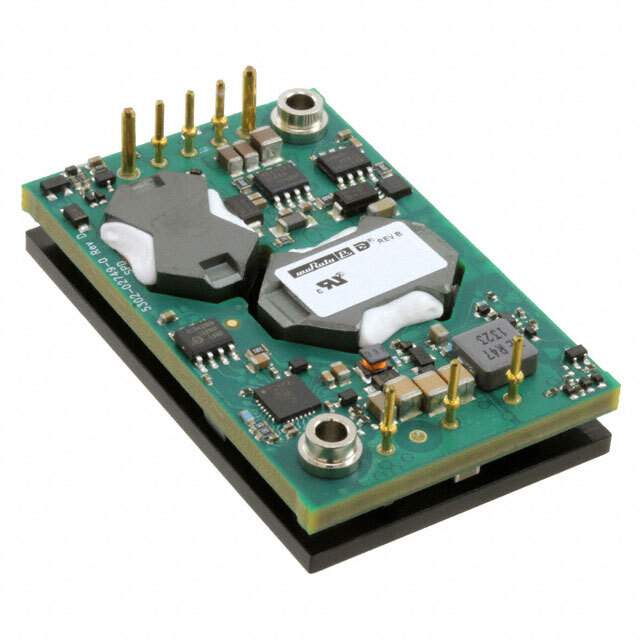

PAQ-29/5-D48NB-C Real Image
Same model may have multiple batches, images only for reference.

PAQ-29/5-D48NB-C

Part No PAQ-29/5-D48NB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 29.8V 150W / Isolated Module DC DC Converter 1 Output 29.8V 5A 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series PAQ (150W)
Package Tray
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 29.8V
Current - Output (Max) 5A
Power (Watts) 150 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92.5%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm)
Control Features Enable, Active Low
Base Product Number PAQ-29
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337855-PAQ-29/5-D48NB-C
Ultra Librarian 3D Model Ultra Librarian PAQ-29/5-D48NB-C CAD Model

Description

The PAQ-29/5-D48NB-C is a 150W isolated module DC-DC converter designed for use in power supply applications.

  • Voltage Input Range: 36V to 75V
  • Voltage Output: 29.8V
  • Current Output: 5A
  • Efficiency: 92.5%
  • Package: 9-DIP Module
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Murata Power Solutions Inc.
  • Application: ITE (Commercial)
