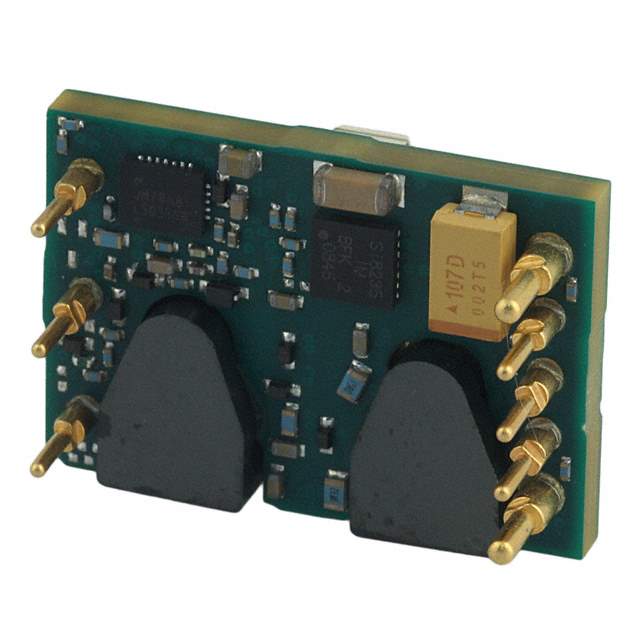

The ULS-3.3/20-D48N-C is a DC DC converter designed for use in board mount power supplies from Murata Power Solutions Inc. This isolated module is part of the ULS (60W) series.

• Series: ULS (60W)
• Packaging: Tray
• Part Status: Not For New Designs
• Features: Remote On/Off, OTP, OVP, SCP, UVLO
• Size / Dimension: 1.30" L x 0.90" W x 0.40" H (33.0mm x 22.9mm x 10.2mm)
• Package / Case: 8-DIP Module, 1/16 Brick
• Applications: ITE (Commercial)
• Power (Watts): 66W
• Control Features: Enable, Active Low
• Voltage - Isolation: 2.25 kV
• Number of Outputs: 1
• Current - Output (Max): 20A
• Voltage - Input (Min): 36V
• Voltage - Input (Max): 75V
• Voltage - Output 1: 3.3V
• Efficiency: 90%
• MSL: 1 (Unlimited)
• HTSUS: 8504.40.9580
