Same model may have multiple batches, images only for reference.

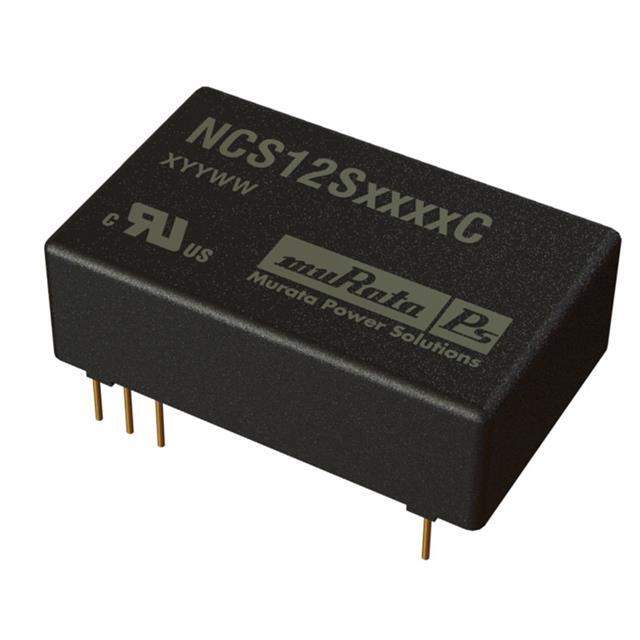

NCS12S1203C Real Image
Same model may have multiple batches, images only for reference.

NCS12S1203C

Part No NCS12S1203C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description UL 60950 recognition pending 4:1 Wide range voltage input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS12
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 9V
Voltage Input MAX 36V
Voltage - Output 1 3.3V
Current - Output (Maximum) 3.64A
Power (Watts) 12W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features OTP, SCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 83.5%
Mounting Style Through Hole
Package 24-DIP Module, 8 Leads
Size 1.26" L x 0.79" W x 0.41" H (32.0mm x 20.0mm x 10.5mm)
Win Source Part Number 1230501-NCS12S1203C
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name NCS12
Introduction Date July 16, 2013
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian NCS12S1203C CAD Model

Description

The NCS12S1203C by Murata Power Solutions Inc. is a 12W isolated module that is designed for ITE (Commercial) applications.

  • Series: NCS12
  • Package: Tube
  • Mounting Style: Through-Hole
  • Operating Temperature: -40°C ~ 85°C
  • Features: OTP, SCP, and UVLO
  • Package: 24-DIP module, 8 leads
  • Voltage Isolation: 1.5kV (1500V)
  • Output: Single
  • Output Voltage: 3.3V
  • Efficiency: 83.5%
  • Size: 1.26" L x 0.79" W x 0.41" H (32.0mm x 20.0mm x 10.5mm)
  • Input Voltage Range: 9V to 36V
  • Maximum Output Current: 3.64A
  • Supply and Demand Status: limited
