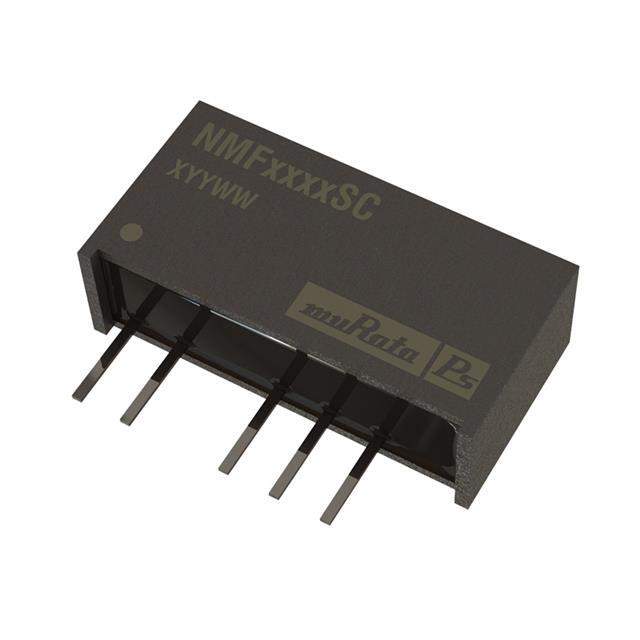

Same model may have multiple batches, images only for reference.

NMF0515SC

Name: NMF0515SC
Brand: Murata Power Solutions Inc.
SKU: 790745
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMF0515SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 1W 5VIN 15V SIP SGL / Module DC-DC 5VIN 1-OUT 15V 0.067A 1W 5-Pin SIP
Datasheet	NMF0515SC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Murata Power Solutions Inc.
Series	NMF
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	4.75V
Voltage Input MAX	5.25V
Voltage - Output 1	15V
Current - Output (Maximum)	67mA
Power (Watts)	1W
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Operating Temperature Range	0°C ~ 70°C
Efficiency	62%
Mounting Style	Through Hole
Package	7-SIP Module, 5 Leads
Dimension	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number	790745-NMF0515SC
Popularity	Medium
Supply and Demand Status	Limited
Family Name	NMF0515SC
Introduction Date	February 29, 2008
Country of Origin	China
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian NMF0515SC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. isolated module is a high-quality electronic component.

Package: 7-SIP module, 5 leads
Power Rating: 1W
Voltage Isolation: 1kV (1000V)
Voltage Output: 15V
Efficiency: 62%
Temperature Range: 0°C to 70°C
Applications: ITE (Commercial)
Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
