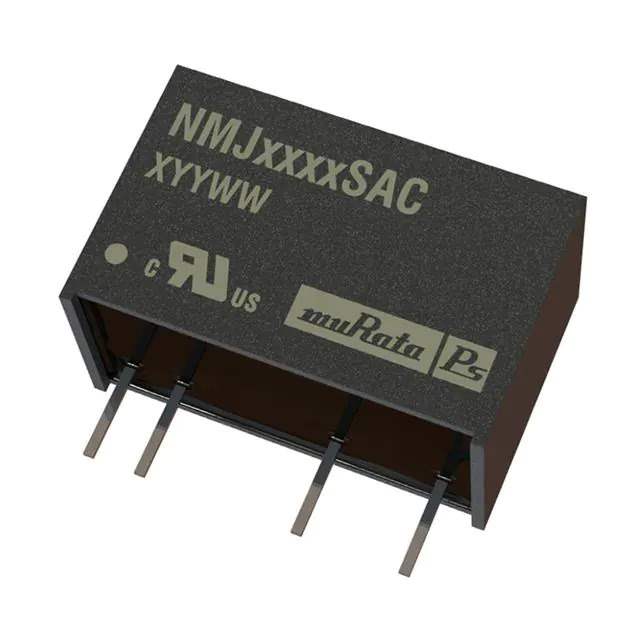

NMJ1205SAC Real Image
Same model may have multiple batches, images only for reference.

NMJ1205SAC

Part No NMJ1205SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 69%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649169-NMJ1205SAC
Ultra Librarian 3D Model Ultra Librarian NMJ1205SAC CAD Model

Description

The NMJ1205SAC is a power supply module designed for board mount applications. The NMJ1205SAC belongs to the NMJ series, and is manufactured by Murata Power Solutions Inc..

  • Series: NMJ series
  • Type: 1W isolated module
  • Voltage Isolation: 5.2 kV
  • Output: single output
  • Maximum Current: 200mA
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage: 5V
  • Efficiency: 69%
  • Application: ITE (Commercial)
  • Mounting: through hole
  • Package: 7-SIP module with 4 leads
  • Operating Temperature: -40°C to 60°C
  • Status: active product
