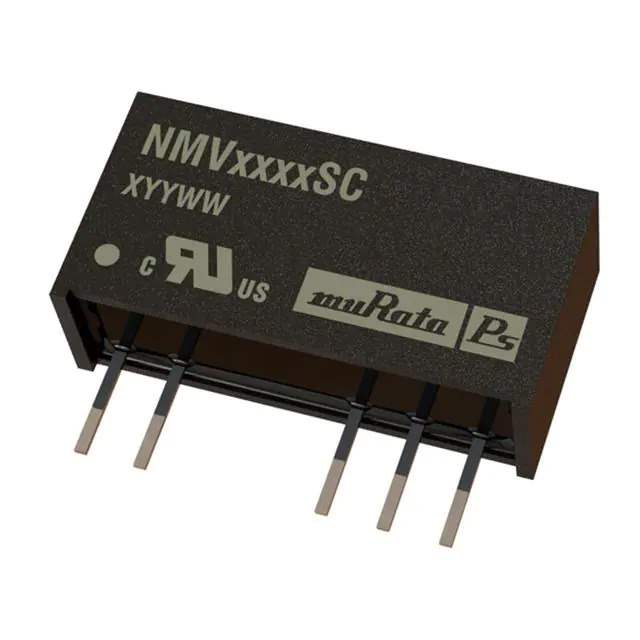

Same model may have multiple batches, images only for reference.

NMV0505SC

Name: NMV0505SC
Brand: Murata Power Solutions Inc.
SKU: 649205
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NMV0505SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMV (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	71.5%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number	NMV05
Standard Package	25 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649205-NMV0505SC
Ultra Librarian 3D Model	Ultra Librarian NMV0505SC CAD Model

Alternative Products

Description

The 649205-NMV0505SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NMV
Application: Power supplies in commercial information technology equipment (ITE)
Package: Tube
Size: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Outputs: Two
Maximum Output Current: 100mA for each output
Input Voltage Range: 4.5V to 5.5V
Output Voltage (Output 1): 5V
Output Voltage (Output 2): -5V
Voltage Isolation: 3 kV
Efficiency: 71.5%
Mounting Type: Through-Hole
Package / Case: 7-SIP module with 5 leads
Operating Temperature: -40°C to 85°C
