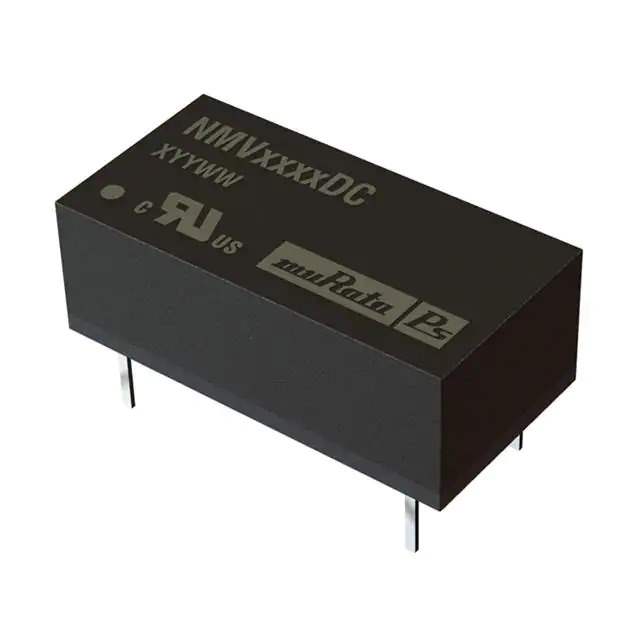

NMV0515DC

Name: NMV0515DC
Brand: Murata Power Solutions Inc.
SKU: 847770
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMV0515DC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMV (1W)
Package	Tube
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	79%
Mounting Type	Through Hole
Package / Case	14-DIP Module, 6 Leads
Size / Dimension	0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Base Product Number	NMV05
Standard Package	25 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847770-NMV0515DC
Ultra Librarian 3D Model	Ultra Librarian NMV0515DC CAD Model

Alternative Products

Description

The NMV0515DC is a 1W isolated module power supply from Murata Power Solutions Inc.

Series: NMV
Voltage Isolation: 3 kV
Output Voltage: 15V, -15V
Input Voltage: 4.5V to 5.5V
Application: ITE (Commercial)
Size: 0.77" L x 0.39" W x 0.27" H
Mounting Type: Through Hole
Efficiency: 79%
Maximum Output Current: 33mA (each output)
Operating Temperature: -40°C to 85°C
Package: 14-DIP Module (6 Leads)
Standard Package Quantity: 25 pcs
Product Status: Last Time Buy
