Same model may have multiple batches, images only for reference.

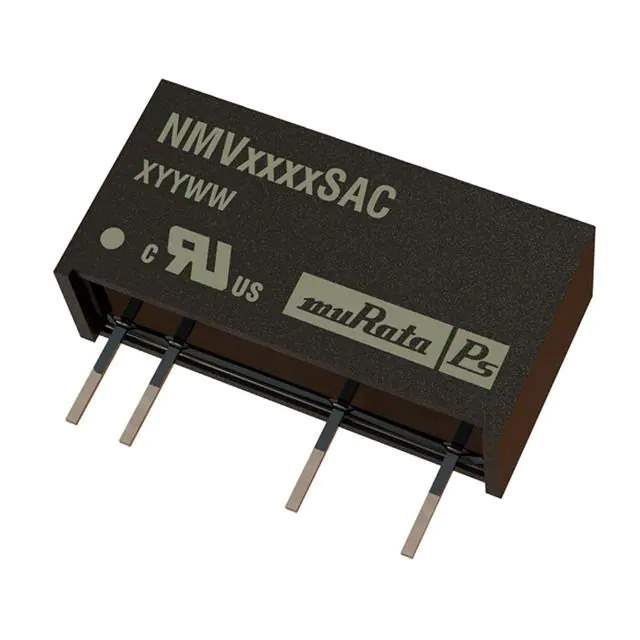

NMV1215SAC Real Image
Same model may have multiple batches, images only for reference.

NMV1215SAC

Part No NMV1215SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV12
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649215-NMV1215SAC
Ultra Librarian 3D Model Ultra Librarian NMV1215SAC CAD Model

Description

The NMV1215SAC is a DC-DC converter from Murata Power Solutions Inc.. It belongs to the NMV (1W) series and provides 1W of power.

  • Series: NMV (1W)
  • Application: ITE (Commercial)
  • Power (Watts): 1W
  • Number of Outputs: 1
  • Voltage - Output: 15V
  • Voltage - Isolation: 3kV
  • Size / Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 7-SIP Module, 4 Leads
  • Efficiency: 77%
