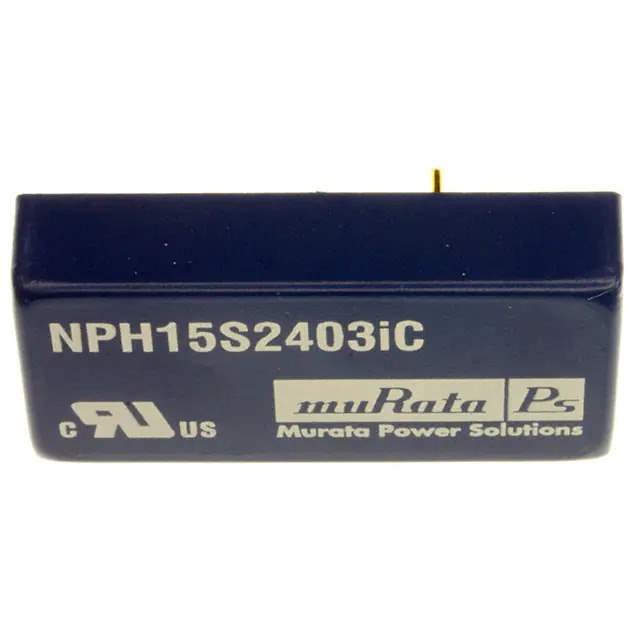

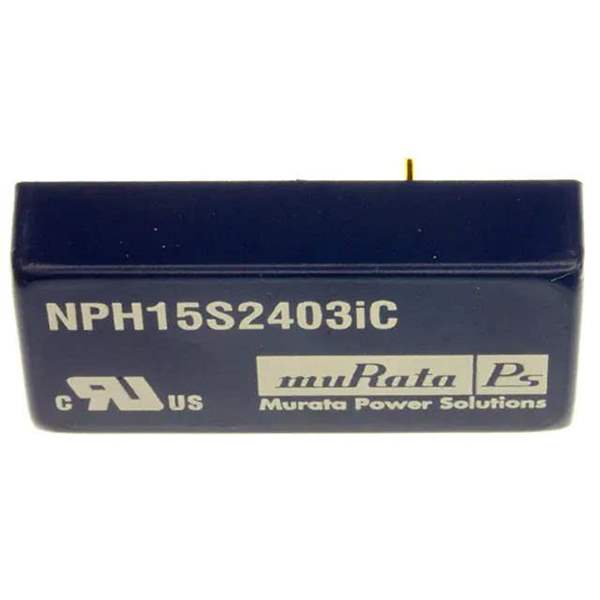

Same model may have multiple batches, images only for reference.

NPH15S2403IC

Name: NPH15S2403IC
Brand: Murata Power Solutions Inc.
SKU: 649365
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NPH15S2403IC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.4V 15W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NPH15S (15W)
Package	Tube
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	3.4V
Current - Output (Max)	4.4A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 110°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm)
Base Product Number	NPH15S24
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649365-NPH15S2403IC
Ultra Librarian 3D Model	Ultra Librarian NPH15S2403IC CAD Model

Alternative Products

Description

The NPH15S2403IC is an isolated module power supply designed for board mount applications.

Series: NPH15S
Power Rating: 15W
Voltage Isolation: 1.5 kV
Output Voltage: 3.4V
Maximum Output Current: 4.4A
Efficiency: 81%
Temperature Range: -40°C to 110°C
Package: 6-DIP module
Applications: ITE (Commercial)
Standard Package: 20 pcs
Manufacturer: Murata Power Solutions Inc.
Status: Last time buy
ECCN: EAR99
