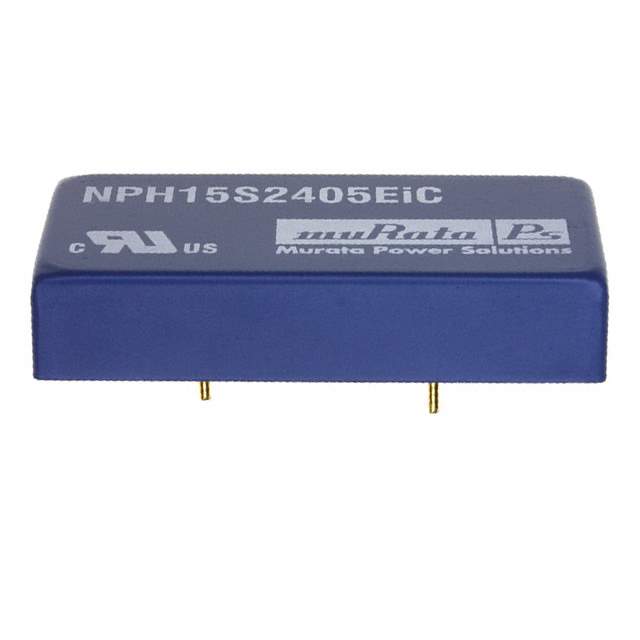

Same model may have multiple batches, images only for reference.

NPH15S2405EIC

Name: NPH15S2405EIC
Brand: Murata Power Solutions Inc.
SKU: 1082653
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NPH15S2405EIC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5.1V 15W / Isolated Module DC DC Converter 1 Output 5.1V 3A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NPH15S (15W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5.1V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 110°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm)
Base Product Number	NPH15S24
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1635-5
Standard Package	20
Win Source Part Number	1082653-NPH15S2405EIC
Ultra Librarian 3D Model	Ultra Librarian NPH15S2405EIC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. NPH15S (15W) series isolated module is a DC-DC converter designed for ITE (Commercial) applications.

Power: 15 W
Voltage Isolation: 1.5 kV
Mounting Type: through hole
Package Size: 6-DIP Module
Standard Package: 20
Package: tube
Current Output: 3A
Efficiency: 84%
Voltage Input: 18V to 36V
Voltage Output: 5.1V
HTSUS: 8504.40.9580
Series: NPH15S (15W)
Base Product Number: NPH15S24
