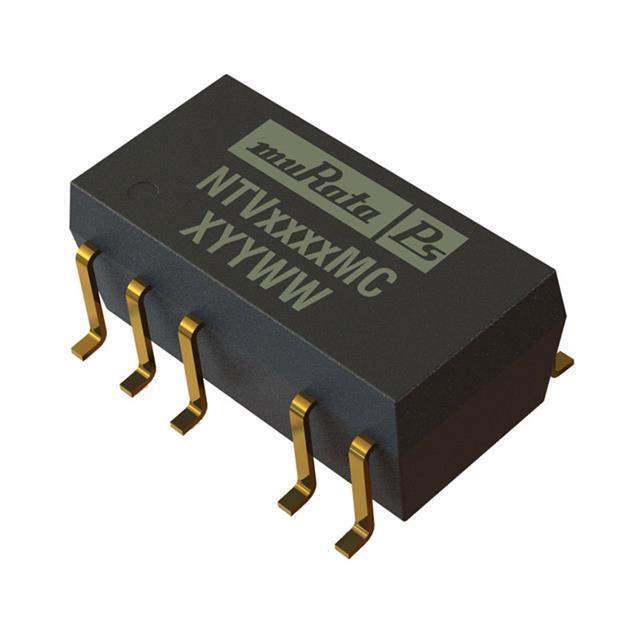

NTV1209MC Real Image
Same model may have multiple batches, images only for reference.

NTV1209MC

Part No NTV1209MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W  /  Isolated Module DC DC Converter 2 Output 9V -9V 55mA, 55mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTV (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting SMD (SMT)
Package / Case 22-SMD Module, 10 Leads
Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Base Product Number NTV12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-1699-5
Standard Package 25
Win Source Part Number 1019044-NTV1209MC
Ultra Librarian 3D Model Ultra Librarian NTV1209MC CAD Model

Description

The Murata Power Solutions Inc. NTV1209MC is an isolated module type DC-DC converter with a power of 1W.

  • Voltage Isolation: 3kV
  • Outputs: Two outputs
  • Maximum Current Output: 55mA for each output
  • Input Voltage Range: 10.8V to 13.2V
  • Efficiency: 79%
  • Package: Tube
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
