Same model may have multiple batches, images only for reference.

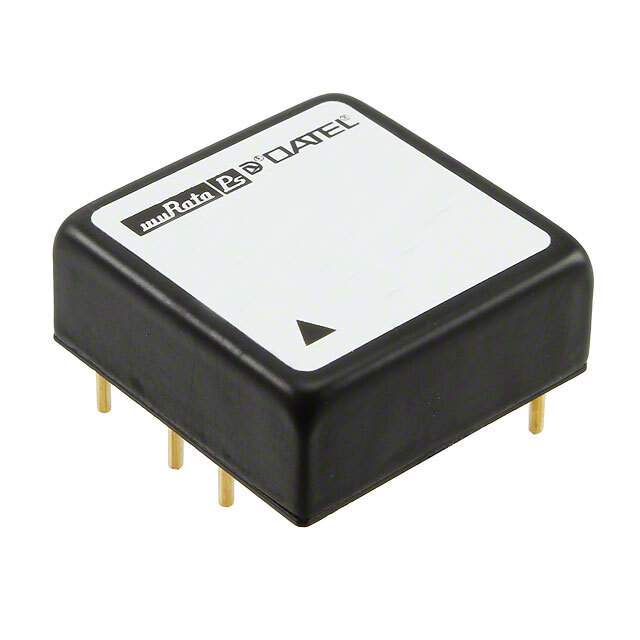

SPM15-120-Q48N-C Real Image
Same model may have multiple batches, images only for reference.

SPM15-120-Q48N-C

Part No SPM15-120-Q48N-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 15W  /  Isolated Module DC DC Converter 1 Output 12V 1.3A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series SPM15 (15W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 1.3A
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm)
Control Features Enable, Active Low
Base Product Number SPM15-120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-2904-5
Standard Package 96
Win Source Part Number 1013198-SPM15-120-Q48N-C
Ultra Librarian 3D Model Ultra Librarian SPM15-120-Q48N-C CAD Model

Description

The Murata Power Solutions Inc. SPM15-120-Q48N-C is a 15W isolated module DC-DC converter with remote on/off, OCP, OTP, OVP, SCP, and UVLO features.

  • Application: ITE (Commercial)
  • Standard Package: 96
  • Voltage Isolation: 1.6 kV
  • Output: Single
  • Maximum Current: 1.3A
  • Voltage Output: 12V
  • Efficiency: 84%
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through Hole
  • Package/Case: 6-DIP Module
  • Dimensions: 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm)
  • REACH: Unaffected
  • ECCN: EAR99
