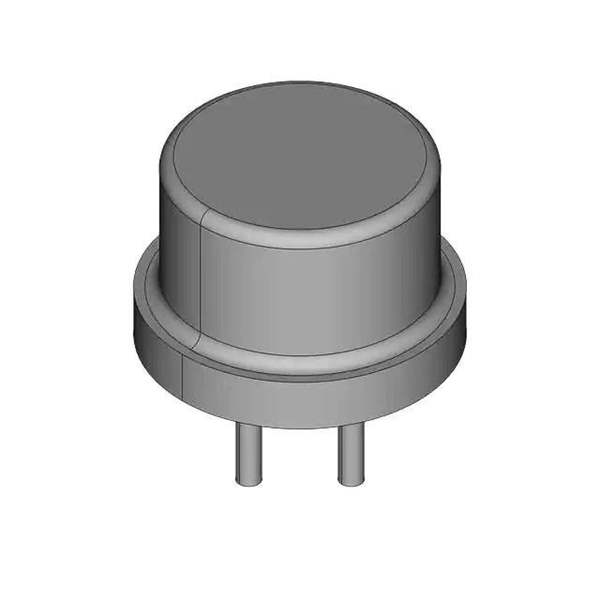

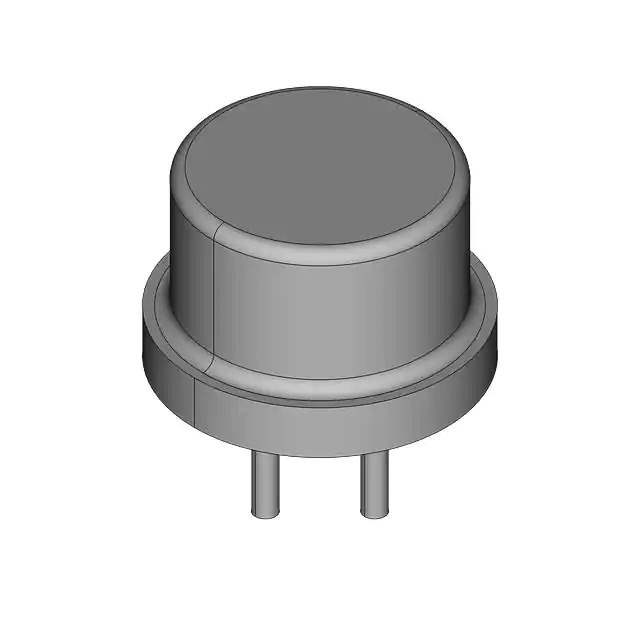

LM120H-15/883 Real Image
Same model may have multiple batches, images only for reference.

LM120H-15/883

Part No LM120H-15/883
Manufacturer National Semiconductor (TI)
Catalog PMIC - Voltage Regulators - Linear
Description LM120QML MILITARY GRADE 1A FIXED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Output Configuration Negative
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) -25V
Voltage - Output (Min/Fixed) -15V
Current - Output 500mA
Current - Quiescent (Iq) 4 mA
PSRR 56dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39-3
Standard Package 4 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 614087-LM120H-15/883
Ultra Librarian 3D Model Ultra Librarian LM120H-15/883 CAD Model

Description

The LM120H-15/883 is a voltage regulator with a fixed negative output configuration.

  • Applications: Power management
  • Category: Integrated circuits (ICs)
  • Maximum Input Voltage: -25V
  • Minimum/Fixed Output Voltage: -15V
  • Maximum Output Current: 500mA
  • Mounting: Through hole
  • Package: TO-205AD, TO-39-3 Metal Can
  • Temperature Range: -55°C to 150°C
  • Protection: Over current and over temperature protection
  • PSRR: 56dB @ 120Hz
  • Status: Active
  • Manufacturer: National Semiconductor (TI)
  • Packaging: Bulk
  • Standard Package: 4 pcs
