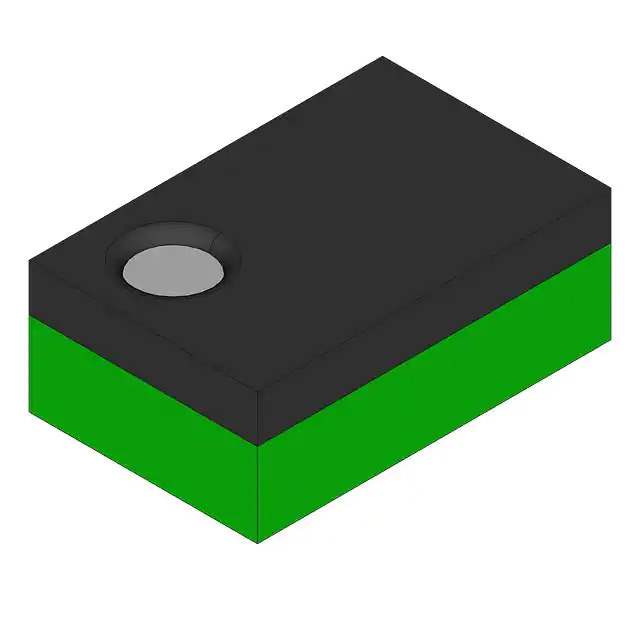

LM3691TL-1.5

Name: LM3691TL-1.5
Brand: National Semiconductor (TI)
SKU: 616445
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LM3691TL-1.5
Manufacturer	National Semiconductor (TI)
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	SWITCHING REG, VOLTAGE-MODE, 1.7
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr	National Semiconductor (TI)
Package	Bulk
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.5V
Current - Output	1A
Frequency - Switching	4MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, DSBGA
Supplier Device Package	6-DSBGA (1.5x1.3)
Base Product Number	LM3691
Standard Package	216 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	616445-LM3691TL-1.5
Ultra Librarian 3D Model	Ultra Librarian LM3691TL-1.5 CAD Model

Alternative Products

Description

The LM3691TL-1.5 is a DC-DC switching regulator designed for power management applications.

Category: Integrated Circuits (ICs)
Subcategory: Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Type: Step-Down Regulator
Current Output: 1A
Output Type: Fixed
Switching Frequency: 4MHz
Outputs: 1
Output Configuration: Positive
Input Voltage: 2.3V to 5.5V
Output Voltage: 1.5V (Minimum/Fixed)
Rectification: Synchronous
Mounting Type: Surface Mount
Package: 6-WFBGA, DSBGA
Operating Temperature: -30°C to 85°C
Manufacturer: National Semiconductor (TI)
Status: Active
