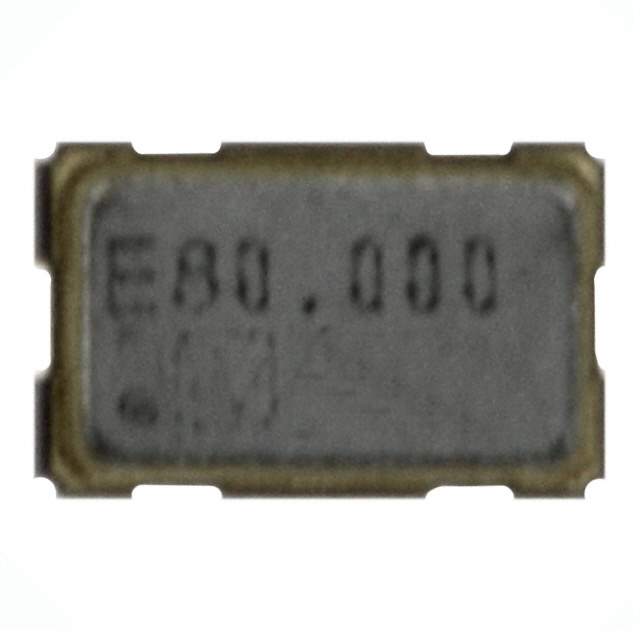

2765E-80.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

2765E-80.000000MHZ

Part No 2765E-80.000000MHZ
Manufacturer NDK
Catalog Oscillators
Description OSC XO 80.000MHZ CMOS SMD
Datasheet
2765E-80.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Series 2765E
Packaging Reel package
Part Status Obsolete(EOL)
Type XO (Standard)
Frequency 80MHz
Function Standby (Power Down)
Output CMOS
Operating Supply Voltage 3.3V
Frequency Stability ±100ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 30mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Current - Supply (Disable) (Maximum) 30μA
Win Source Part Number 766244-2765E-80.000000MHZ
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 2765E-80.000000MHZ CAD Model

Description

The 766244-2765E-80.000000MHZ from NDK America, Inc. is a crystal oscillator.

  • Frequency: 80MHz
  • Frequency Stability: ±100ppm
  • Function: Standby (Power Down)
  • Maximum Supply Current: 30mA
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height: 0.047" (1.20mm)
  • Operating Temperature Range: -20°C to 70°C
  • Mounting Type: SMD
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Status: Obsolete (EOL)
