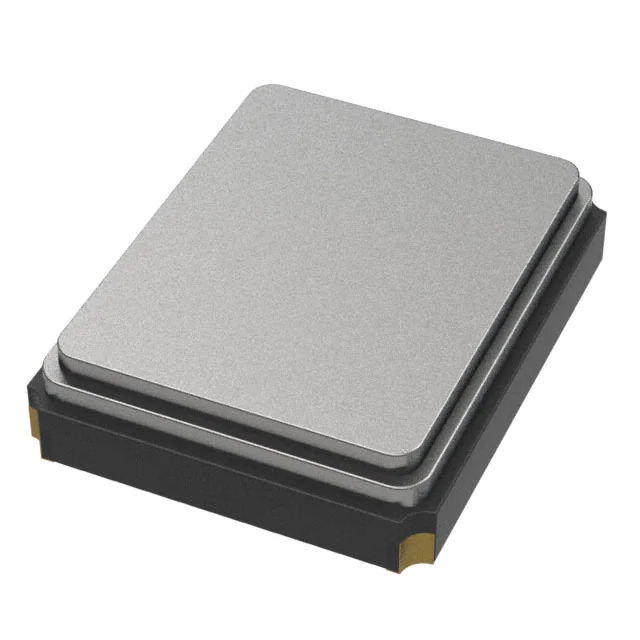

NX2016SA-40M-STD-CZS-3 NDK
Same model may have multiple batches, images only for reference.

NX2016SA-40M-STD-CZS-3

Part No NX2016SA-40M-STD-CZS-3
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 40.0000MHZ 8PF SMD
Datasheet
NX2016SA-40M-STD-CZS-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK America, Inc.
Series NX2016SA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366378-NX2016SA-40M-STD-CZS-3
Ultra Librarian 3D Model Ultra Librarian NX2016SA-40M-STD-CZS-3 CAD Model

Description

The NDK America, Inc. NX2016SA-40M-STD-CZS-3 is a 40 MHz crystal oscillator, manufactured by NDK America, Inc.

  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Frequency: 40 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±15ppm
  • Load Capacitance: 8pF
  • Mode: Fundamental
