Same model may have multiple batches, images only for reference.

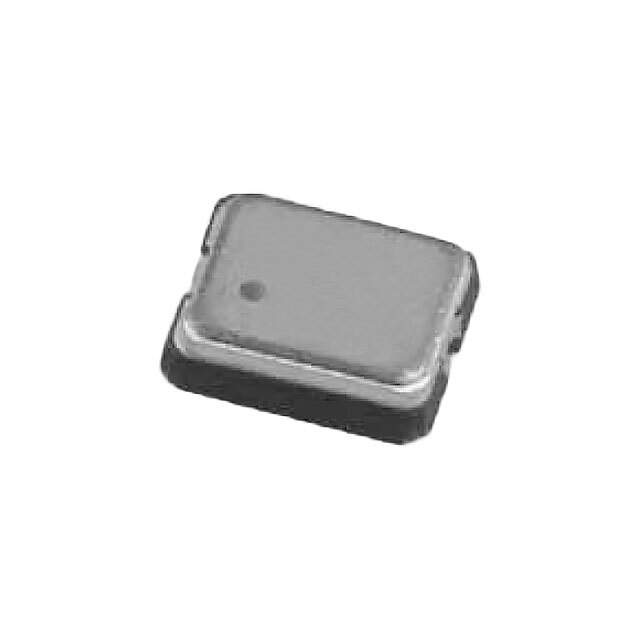

NZ2520SB-25.600MHZ Real Image
Same model may have multiple batches, images only for reference.

NZ2520SB-25.600MHZ

Part No NZ2520SB-25.600MHZ
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC XO 25.6000MHZ CMOS SMD / 25.6 MHz XO (Standard) CMOS Oscillator 3V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr NDK America, Inc.
Series NZ2520SB
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 25.6 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 3V
Frequency Stability ±30ppm
Temperature Range - Operating -10°C ~ 60°C
Current - Supply (Max) 5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349639-NZ2520SB-25.600MHZ
Ultra Librarian 3D Model Ultra Librarian NZ2520SB-25.600MHZ CAD Model

Description

The NZ2520SB-25.600MHZ is an electronic component manufactured by NDK.

  • Category: Oscillator
  • Popularity: Low
  • Series: NZ2520SB
  • Win Source Part Number: 1349639
