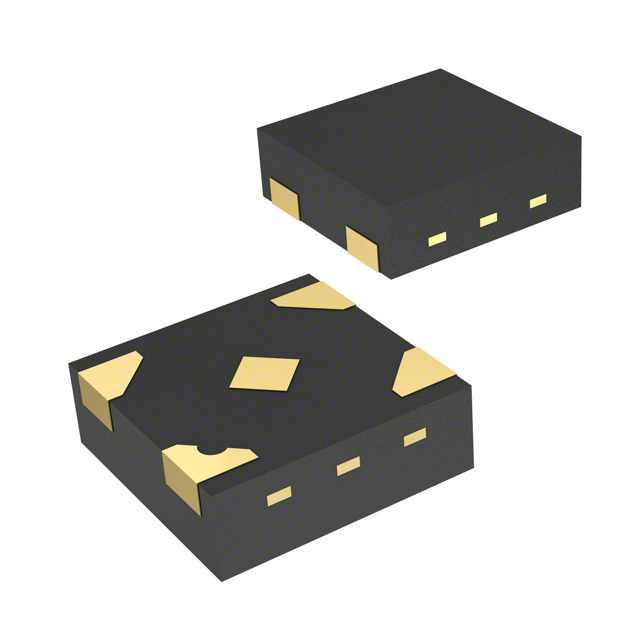

74AXP1G09GXH Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74AXP1G09GXH

Part No 74AXP1G09GXH
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE AND OD 1CH 2-INP 5X2SON
Datasheet
74AXP1G09GXH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74AXP
Package Tape & Reel
Product Status Last Time Buy
Logic Type AND Gate
Number of Circuits 1
Number of Inputs 2
Features Open Drain
Voltage - Supply 0.7V ~ 2.75V
Current - Quiescent (Max) 600 nA
Current - Output High, Low -, 8mA
Input Logic Level - Low -
Input Logic Level - High -
Max Propagation Delay @ V, Max CL 4.1ns @ 2.5V, 5pF
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Supplier Device Package 5-X2SON (0.80x0.80)
Package / Case 4-XFDFN Exposed Pad
Base Product Number 74AXP1G09
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371196-74AXP1G09GXH
Ultra Librarian 3D Model Ultra Librarian 74AXP1G09GXH CAD Model

Description

The 1371196-74AXP1G09GXH is an integrated circuit (IC) logic gate and inverter designed for electronic devices.

  • Temperature Range: -40°C to 85°C
  • Manufacturer: Nexperia USA Inc.
  • Series: 74AXP
  • Product Status: Last Time Buy
  • Package Type: 4-XFDFN Exposed Pad (0.80x0.80mm)
  • Voltage Supply: 0.7V to 2.75V
  • Logic Type: AND gate
  • Inputs: 2
  • Output: Open Drain
  • Quiescent Current: 600 nA
  • Output Current: 8 mA
