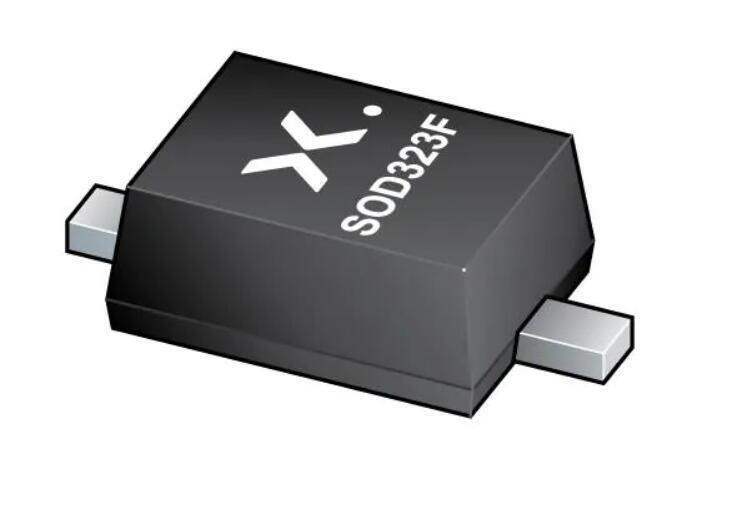

BAT46WJ-QF Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAT46WJ-QF

Part No BAT46WJ-QF
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description BAT46WJ-Q/SOD323F/SOD323F
Datasheet
BAT46WJ-QF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000689-BAT46WJ-QF
Win Source Part Number Cross
Manufacturer Nexperia USA Inc.
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Series Automotive, AEC-Q101
Package Tape & Reel (TR)
Product Status Active
Technology Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 5.9 ns
Current - Reverse Leakage @ Vr 9 µA @ 100 V
Ultra Librarian 3D Model Ultra Librarian BAT46WJ-QF CAD Model

Description

The Nexperia USA Inc. Schottky diode is a fast recovery diode with a speed of less than 500ns and a current of more than 200mA (Io). This diode is a part of the discrete semiconductor products diodes rectifiers single diodes category and is a part of the automotive, AEC-Q101 series. It comes in tape and reel packaging and has a reverse recovery time (trr) of 5.9ns. The current reverse leakage at Vr is 9 μA at 100V. The Nexperia USA Inc. Schottky diode is a reliable and efficient option for various applications that require a fast and reliable diode.
