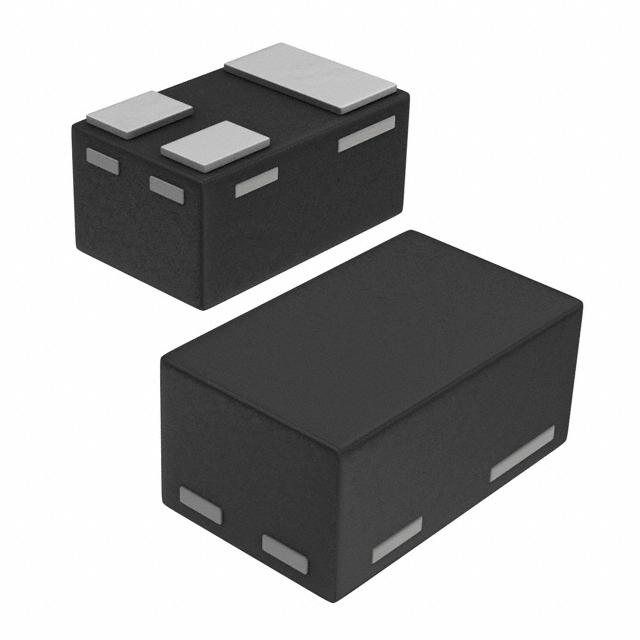

BAT54CM,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAT54CM,315

Part No BAT54CM,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT883
Datasheet
BAT54CM,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package DFN1006-3
Win Source Part Number 1022170-BAT54CM,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAT54CM,315 CAD Model

Description

The BAT54CM,315 is a Schottky diode with a maximum DC reverse voltage of 30V from Nexperia USA Inc.

  • Maximum DC Reverse Voltage: 30V
  • Maximum Forward Voltage: 800mV @ 100mA
  • Current Reverse Leakage: 2μA @ 25V
  • Package: DFN1006-3
  • Suitable for: Use in discrete semiconductor products
