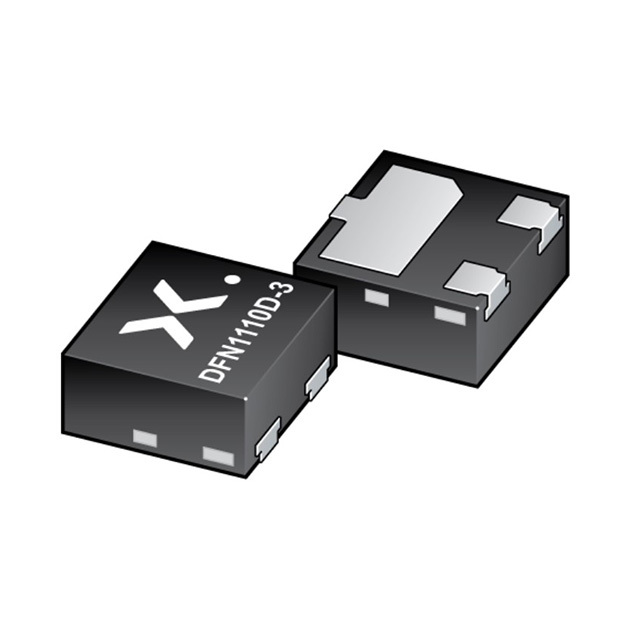

Same model may have multiple batches, images only for reference.
BAT54QC-QZ Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BAT54QC-QZ

Part No BAT54QC-QZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Diode 30 V 200mA Surface Mount, Wettable Flank DFN1412D-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Nexperia USA Inc.
Packaging Reel - TR
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1412D-3
Operating Temperature - Junction 150°C
Base Product Number BAT54
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1479401-BAT54QC-QZ
Ultra Librarian 3D Model Ultra Librarian BAT54QC-QZ CAD Model
