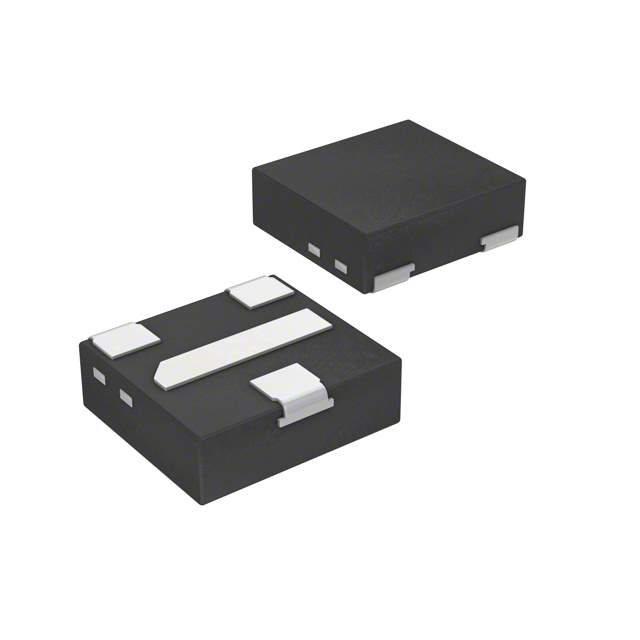

BAV99QAZ Real Image
Same model may have multiple batches, images only for reference.

BAV99QAZ

Part No BAV99QAZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE HS SW 90V 170MA SOT1215
Datasheet
BAV99QAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 19 Weeks
Features Diode Array 1 Pair Series Connection Standard 90 V 170mA (DC) Surface Mount 3-XDFN Exposed Pad
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 3-XDFN Exposed Pad
Case / Package DFN1010D-3
Family Name BAV99
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 568-12993-6, 1727-2554-1, 1727-2554-2, 568-12993-2, 568-12993-6-ND, 568-12993-1, 1727-2554-6, 568-12993-2-ND, 934069815147, 568-12993-1-ND
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863534-BAV99QAZ
Ultra Librarian 3D Model Ultra Librarian BAV99QAZ CAD Model

Description

The Nexperia USA Inc. BAV99QAZ is a diode array that features 1 pair series connection standard, small signal speed of =< 200mA (Io), and any speed.

  • Manufacturer: Nexperia USA Inc.
  • Product: BAV99QAZ
  • Diode Configuration: 1 pair series connection standard
  • Speed: =< 200mA (Io), and any speed
  • Package Includes: 5000 units
  • Estimated Production Lead Time: 19 weeks
  • REACH Status: Unaffected
