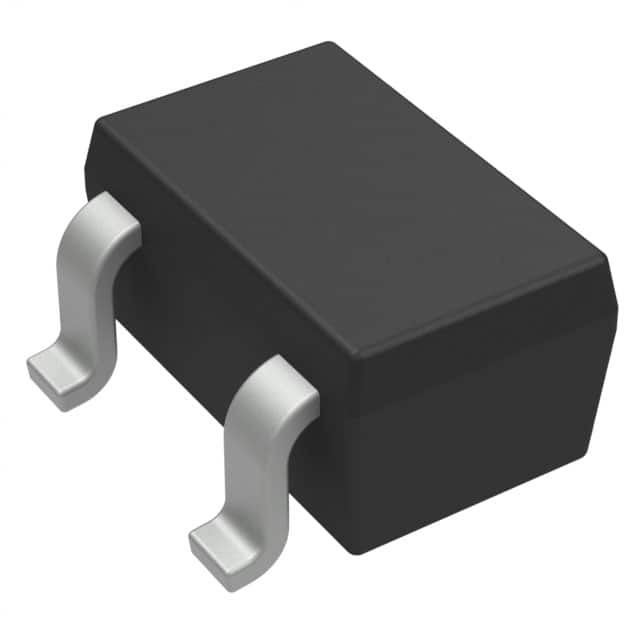

Same model may have multiple batches, images only for reference.

BC850CW,115

Name: BC850CW,115
Brand: Nexperia USA Inc.
SKU: 1048422
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BC850CW,115
Manufacturer	Nexperia USA Inc.
Catalog	RF Transistors (BJT)
Description	TRANS NPN 45V 0.1A SOT323 / Bipolar (BJT) Transistor NPN 45 V 100 mA 100MHz 200 mW Surface Mount SOT-323
Datasheet	BC850CW,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Transistor Type	NPN
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	45 V
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V
Power - Max	200 mW
Frequency - Transition	100MHz
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Base Product Number	BC850
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0075
Other Names	934022080115,BC850CW T/R,1727-4861-6,2156-BC850CW,115-NEX,1727-4861-2,BC850CW,115-ND,1727-4861-1,568-6076-6-ND,568-6076-1-ND,568-6076-2-ND,568-6076-1,568-6076-2,NEXNEXBC850CW,115,568-6076-6,BC850CW T/R-ND
Standard Package	3,000
Win Source Part Number	1048422-BC850CW,115
Ultra Librarian 3D Model	Ultra Librarian BC850CW,115 CAD Model

Alternative Products

Description

The BC850CW,115 is a NPN Bipolar Transistor from Nexperia USA Inc. It is a part of the Automotive, AEC-Q101 series and is packaged in Tape & Reel.

Maximum Power: 200 mW
Maximum Collector-Emitter Breakdown Voltage: 45 V
Maximum Collector Current: 100 mA
Transistor Type: NPN
Vce Saturation: 600mV @ 5mA, 100mA
Maximum Collector Cutoff: 15nA (ICBO)
DC Current Gain (hFE): 420 @ 2mA, 5V
Frequency-Transition: 100MHz
Package/Case: SC-70, SOT-323
Supplier Device Package: SOT-323
Temperature Range for Operating: 150°C (TJ)
Alternative Parts: BC847BW-7-F, BC847CW-7-F, BC847AW-7-F, DTC113ZUAT106, DTC144TUAT106, and FJX3014RTFBC850CW,115
MSL Level: 1 (Unlimited)
REACH Status: REACH Unaffected
HTSUS: 8541.21.0075
