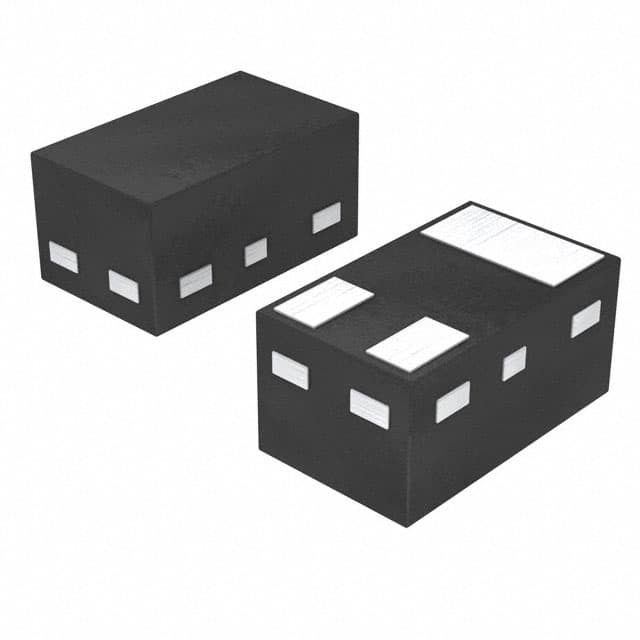

Same model may have multiple batches, images only for reference.
PBSS2540MB,315
Same model may have multiple batches, images only for reference.

PBSS2540MB,315

Part No PBSS2540MB,315
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 40V 0.5A 3DFN
Datasheet
PBSS2540MB,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Bipolar (BJT) Transistor NPN 40 V 500 mA 450MHz 250 mW Surface Mount DFN1006B-3
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range 150°C (TJ)
Mounting Surface Mount
Package 3-XFDFN
Case / Package DFN1006B-3
Family Name PBSS2540
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Other Part Number 568-10516-2-ND, 568-10516-6, 934065876315, 568-10516-2, 1727-1295-6, 568-10516-1, 1727-1295-2, 568-10516-6-ND, 568-10516-1-ND, PBSS2540MB,315-ND, 1727-1295-1
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888594-PBSS2540MB,315
Ultra Librarian 3D Model Ultra Librarian PBSS2540MB,315 CAD Model

Description

The Nexperia USA Inc. PBSS2540MB,315 is a bipolar (BJT) transistor NPN 40 V 500 mA 450MHz 250 mW surface mount DFN1006B-3. Nexperia USA Inc. manufactures it.

  • Type: Bipolar (BJT) Transistor NPN
  • Voltage: 40 V
  • Current: 500 mA
  • Frequency: 450MHz
  • Power: 250 mW
  • Mounting Type: Surface Mount
  • Package: DFN1006B-3
  • Supply and Demand: Limited
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 26 weeks
  • REACH Status: Unaffected
  • HTSUS Code: 8541.21.0075
