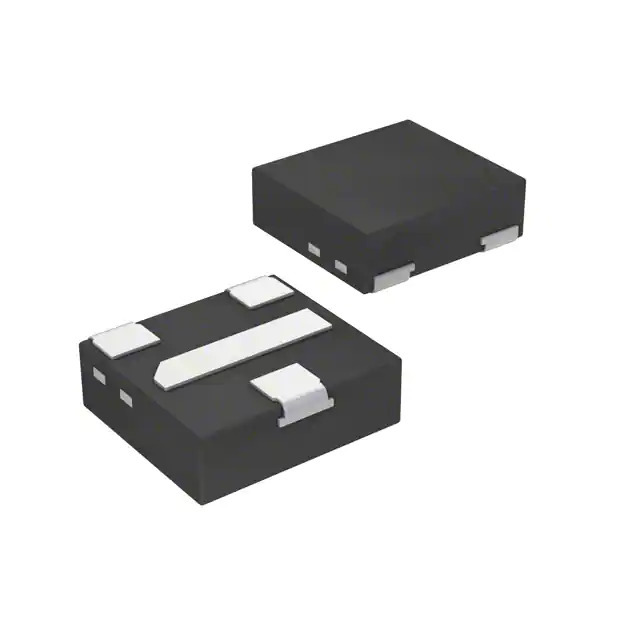

PBSS5160QAZ

Name: PBSS5160QAZ
Brand: Nexperia USA Inc.
SKU: 1377032
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PBSS5160QAZ
Manufacturer	Nexperia USA Inc.
Catalog	Transistors (BJT) - Single
Description	TRANS PNP 60V 1A DFN1010D-3
Datasheet	PBSS5160QAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q100
Package	Tape & Reel
Product Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1 A
Voltage - Collector Emitter Breakdown (Max)	60 V
Vce Saturation (Max) @ Ib, Ic	460mV @ 50mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	85 @ 1A, 2V
Power - Max	325 mW
Frequency - Transition	150MHz
Temperature Range - Operating	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-XDFN Exposed Pad
Supplier Device Package	DFN1010D-3
Base Product Number	PBSS5160
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0075
Win Source Part Number	1377032-PBSS5160QAZ
Ultra Librarian 3D Model	Ultra Librarian PBSS5160QAZ CAD Model

Alternative Products

Description

The 1377032-PBSS5160QAZ is a PNP bipolar transistor designed for discrete semiconductor applications.

Manufacturer: Nexperia USA Inc.
Maximum Collector Current (Ic): 1A
Maximum Collector-Emitter Voltage: 60V
DC Current Gain (hFE): 85 @ 1A and 2V
Saturation Voltage (Vce saturation): 460mV @ 50mA and 1A
Package: 3-XDFN Exposed Pad
Mounting Type: Surface mount
Applications: Power management, motor control, and audio amplifiers
