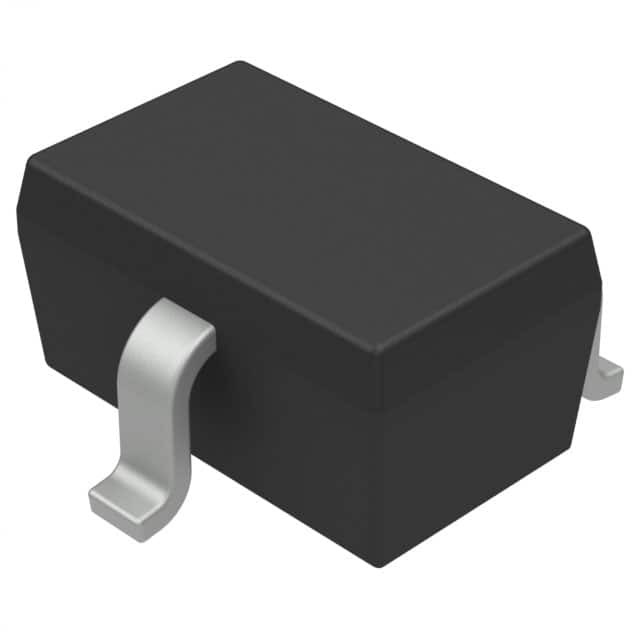

PDTC114EU,135

Name: PDTC114EU,135
Brand: Nexperia USA Inc.
SKU: 1128142
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PDTC114EU,135
Manufacturer	Nexperia USA Inc.
Catalog	RF Transistors (BJT)
Description	TRANS PREBIAS NPN 200MW SOT323 / Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 200 mW Surface Mount SOT-323
Datasheet	PDTC114EU,135 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single, Pre-Biased
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Transistor Type	NPN - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	10 kOhms
Resistor - Emitter Base (R2)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	150mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	1µA
Power - Max	200 mW
Mounting	SMD (SMT)
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Base Product Number	PDTC114
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0095
Other Names	1727-8523-1,1727-8523-2,934044140135,PDTC114EU,135-ND,1727-8523-6
Standard Package	10,000
Win Source Part Number	1128142-PDTC114EU,135
Ultra Librarian 3D Model	Ultra Librarian PDTC114EU,135 CAD Model

Description

The Nexperia USA Inc. PDTC114EU,135 is a pre-biased NPN transistor with a package/case of SC-70, SOT-323.

Mounting Type: surface mount
Power Dissipation: 200 mW
Voltage - Collector-Emitter Breakdown (Max): 50 V
Current - Collector (Ic) (Max): 100 mA
Vce Saturation (Max) @ Ib, Ic: 150mV @ 500μA, 10mA
Current - Collector Cutoff (Max): 1μA
DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
Alternative Part (Cross-Reference): PDTC114EU 135 and PDTC114EU135
