PESD2CANFD24V-UX Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD2CANFD24V-UX

Part No PESD2CANFD24V-UX
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes

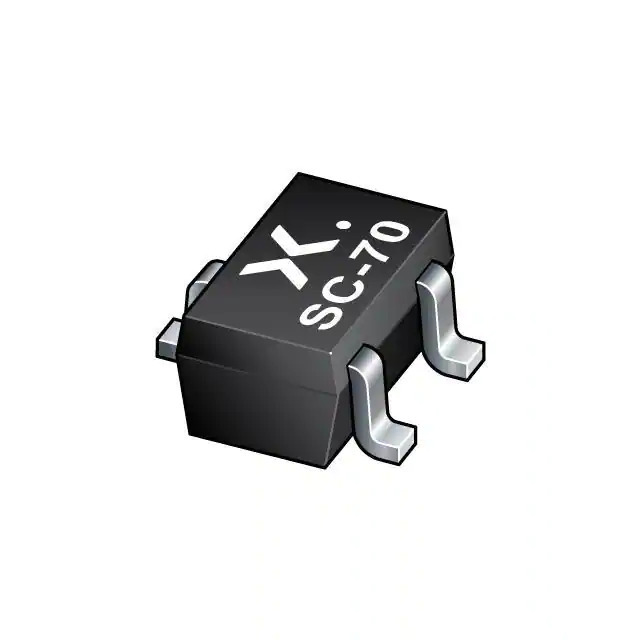

Description TVS DIODE 24VWM 42VC SOT323 / 42V Clamp 2.6A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323
Datasheet
PESD2CANFD24V-UX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25.5V
Voltage - Clamping (Max) @ Ipp 42V
Current - Peak Pulse (10/1000µs) 2.6A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 5.2pF @ 1MHz
Temperature Range - Operating -55°C ~ 175°C (TA)
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Supplier Device Package SOT-323
Base Product Number PESD2CANFD24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362432-PESD2CANFD24V-UX
Ultra Librarian 3D Model Ultra Librarian PESD2CANFD24V-UX CAD Model

Description

The PESD2CANFD24V-UX is a bidirectional TVS diode designed for automotive CAN bus applications.

  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 25.5V
  • Clamping Voltage: 42V @ 2.6A
  • Series: PESD2CANFD
  • Grade: Automotive-grade, AEC-Q101 qualified
  • Package: SC-70, SOT-323
  • Number of Channels: 2 bidirectional
  • Mounting Type: Surface Mount
