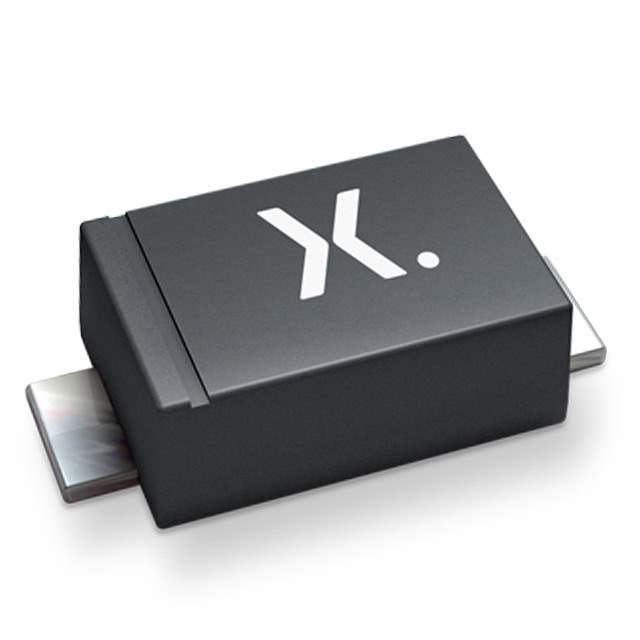

PMEG10010ELRX

Name: PMEG10010ELRX
Brand: Nexperia USA Inc.
SKU: 506001
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG10010ELRX
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	Rectifier Diode Schottky 100V 1A 3.7ns Automotive 2-Pin SOD-123W T/R / DIODE SCHOTTKY 100V 1A SOD123
Datasheet	PMEG10010ELRX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	770mV @ 1A
Speed(Frequency)	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	3.7ns
Current - Reverse Leakage @ Vr	150nA @ 100V
Capacitance @ Vr, F	70pF @ 1V, 1MHz
Mounting	SMD (SMT)
Case / Package	CFP3
Operating Temperature - Junction	175°C (Max)
Win Source Part Number	1089526-PMEG10010ELRX
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	PMEG10010ELR
Introduction Date	May 07, 2015
ECCN	EAR99
Country of Origin	Malaysia
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian PMEG10010ELRX CAD Model

Alternative Products

Description

The PMEG10010ELRX Schottky diode from Nexperia USA Inc. is designed for use in discrete semiconductor products.

Package: CFP3
Maximum DC Reverse Voltage: 100V
Average Rectified Current: 1A
Forward Voltage: 770mV @ 1A
Reverse Recovery Time: 3.7ns
Reverse Leakage Current: 150nA @ 100V
