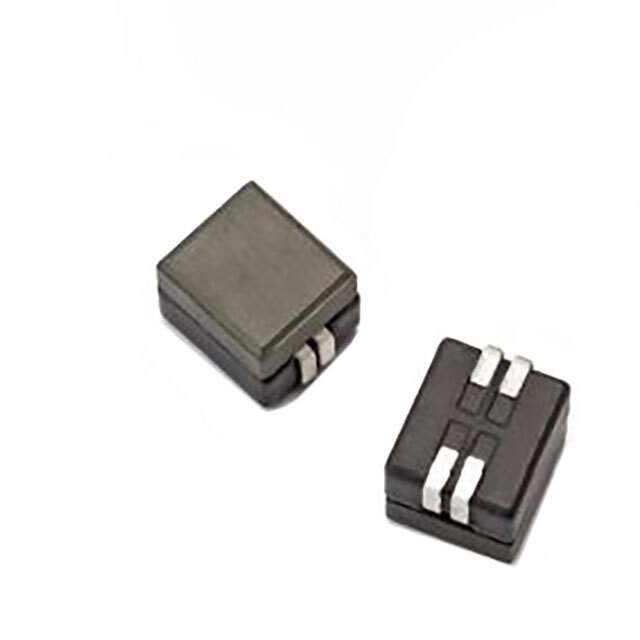

FPT1006-340-R Real Image
Same model may have multiple batches, images only for reference.

FPT1006-340-R

Part No FPT1006-340-R
Manufacturer Vicor Corporation
Catalog Fixed Inductors
Description FIXED IND 340NH 19A SMD / 340 nH Shielded Drum Core, Wirewound Inductor 19 A 1mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vicor Corporation
Series FPT1006
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 340 nH
Tolerance ±10%
Current Rating (Amps) 19 A
Current - Saturation (Isat) 40.5A
Shielding Shielded
DC Resistance (DCR) 1mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.380" L x 0.335" W (9.65mm x 8.50mm)
Height - Seated (Max) 0.252" (6.40mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1102-FPT1006-340-RTR,FPT1006340R
Standard Package 620
Win Source Part Number 1117696-FPT1006-340-R
Ultra Librarian 3D Model Ultra Librarian FPT1006-340-R CAD Model

Description

The FPT1006-340-R is a drum core, wirewound inductor from Vicor Corporation.

  • Manufacturer: Vicor Corporation
  • Product Name: FPT1006-340-R
  • Type: Drum Core, Wirewound Inductor
  • Shielding: Shielded
  • Inductance: 340 nH
  • Tolerance: ±10%
  • Seated Height: 0.252" (6.40mm)
  • Dimensions: 0.380" L x 0.335" W (9.65mm x 8.50mm)
  • Mounting Type: SMD (SMT)
  • DC Resistance (DCR): 1mOhm Max
  • Current Rating: 19 A
  • Current Saturation (Isat): 40.5A
  • Operating Temperature: -55°C to 125°C
  • Package/Case: Nonstandard
  • REACH: Unaffected
