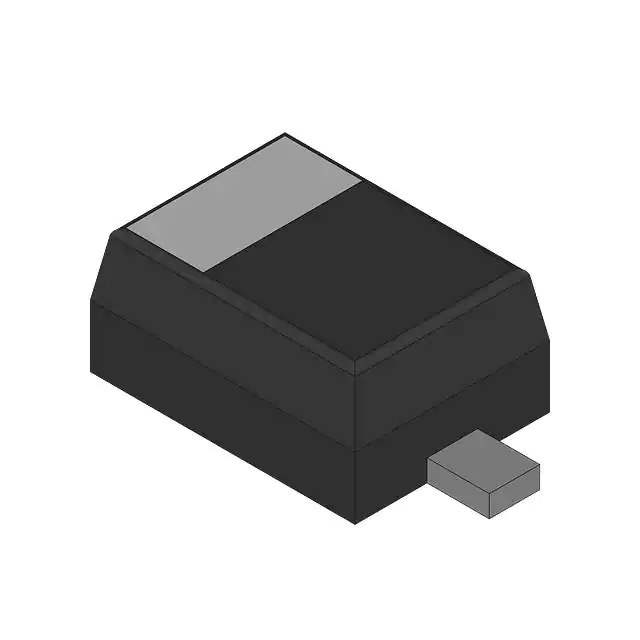

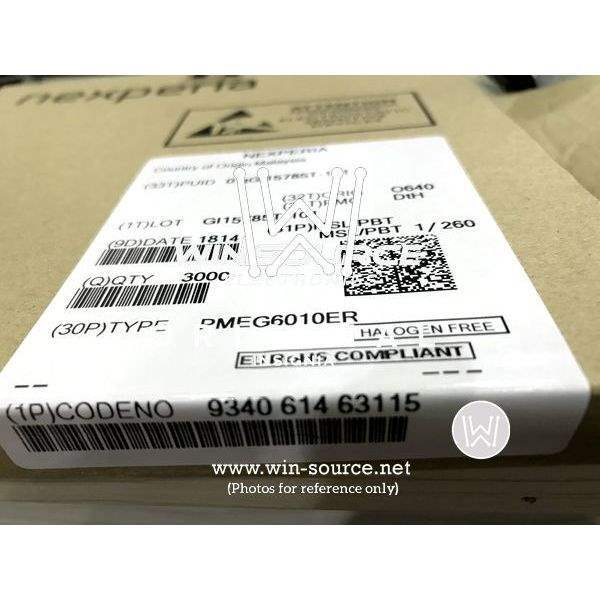

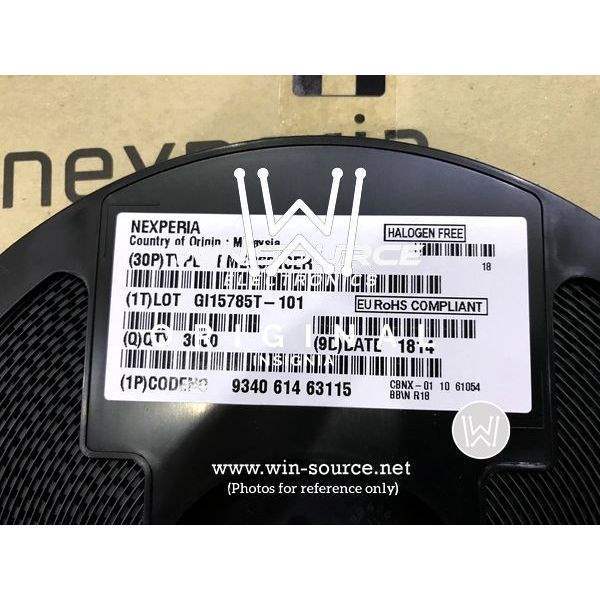

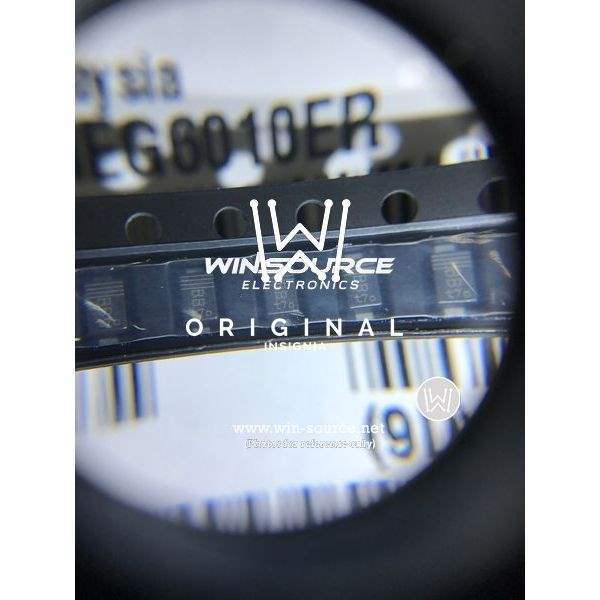

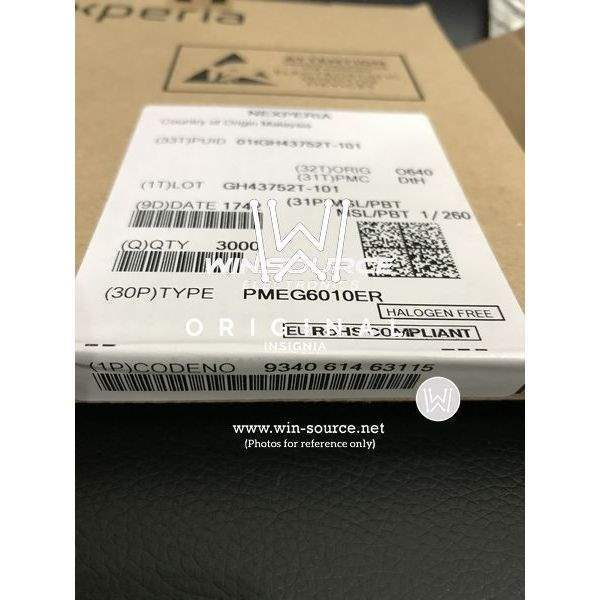

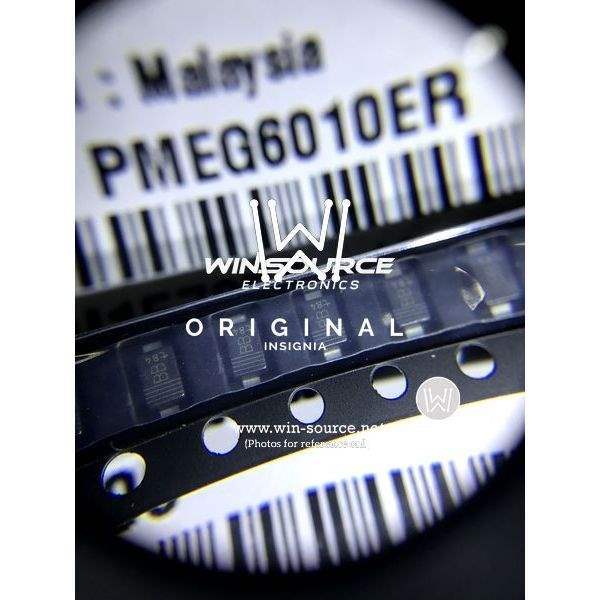

PMEG6010ER NXP PMEG6010ER Real Image PMEG6010ER label picture 2 PMEG6010ER label picture 3 PMEG6010ER label picture 4 PMEG6010ER real image PMEG6010ER real image 2
Same model may have multiple batches, images only for reference.
PMEG6010ER NXP PMEG6010ER Real Image PMEG6010ER label picture 2 PMEG6010ER label picture 3 PMEG6010ER label picture 4 PMEG6010ER real image PMEG6010ER real image 2
PMEG6010ER NXP PMEG6010ER Real Image PMEG6010ER label picture 2 PMEG6010ER label picture 3 PMEG6010ER label picture 4 PMEG6010ER real image PMEG6010ER real image 2
Same model may have multiple batches, images only for reference.

PMEG6010ER

Part No PMEG6010ER
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SOD123W / Diode 60 V 1A Surface Mount SOD-123W
Datasheet
PMEG6010ER Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Package Bulk
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 530 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 60 µA @ 60 V
Capacitance @ Vr, F 120pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction 150°C (Max)
Base Product Number PMEG6010
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 656353-PMEG6010ER
Ultra Librarian 3D Model Ultra Librarian PMEG6010ER CAD Model

Description

The 656353-PMEG6010ER is a fast recovery Schottky diode from Nexperia USA Inc..

  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 530mV @ 1A
  • Reverse Leakage Current: 60μA @ 60V
  • Capacitance: 120pF @ 1V and 1MHz
  • Mounting Type: Surface Mount
  • Package: SOD-123W
