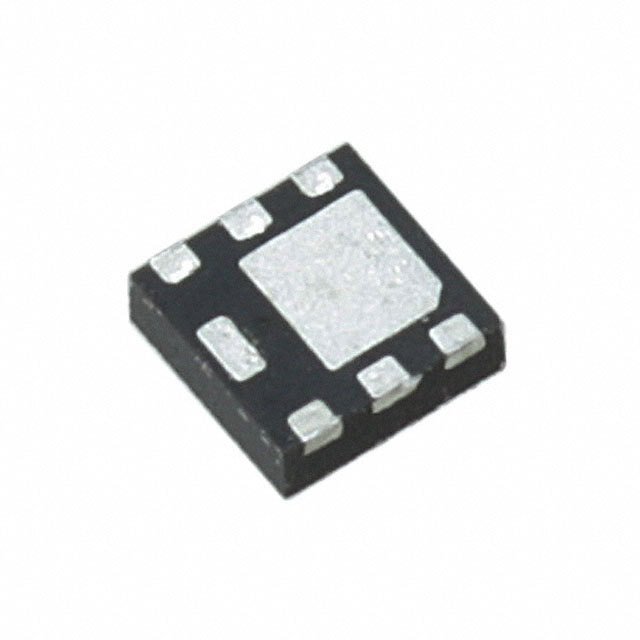

PMPB43XPE,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMPB43XPE,115

Part No PMPB43XPE,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 5A 6DFN
Datasheet
PMPB43XPE,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 23.4nC @ 4.5V
Max Input Capacitance 1550pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.7W (Ta), 12.5W (Tc)
Maximum Rds On at Id,Vgs 48 mOhm @ 5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN2020MD (2x2)
Dimension 6-UDFN Exposed Pad
Win Source Part Number 1089739-PMPB43XPE,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMPB43XPE,115 CAD Model

Description

The Nexperia USA Inc. PMPB43XPE,115 is a P-Channel MOSFET with a drain-source breakdown voltage of 20V and a maximum continuous drain current of 5A @ 25°C.

  • Use: Discrete semiconductor products
  • Temperature Range: -55°C to 150°C
  • Maximum Power Dissipation: 1.7W (Ta) and 12.5W (Tc)
  • Mounting Type: SMD (SMT) technology
  • Gate-Source Threshold Voltage: 900mV @ 250μA
  • Maximum Rds On @ Id, Vgs: 48 mOhm @ 5A, 4.5V
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Gate Charge: 23.4nC @ 4.5V
  • Supply and Demand Status: Sufficient
