The PMPB48EP,115 is a P-channel MOSFET transistor that is designed for use in Discrete Semiconductor Products.

• Product: PMPB48EP,115
• Type: P-channel MOSFET
• Application: Discrete Semiconductor Products
• Maximum Power Rating: 1.7W (Ta), 12.5W (Tc)
• Maximum Drain-to-Source Voltage: 30 V
• Maximum Continuous Drain Current: 4.7A (Ta)
• Rds On (Max) @ Id, Vgs: 50mOhm @ 4.7A, 10V
• Vgs(th) (Max) @ Id: 2.5V @ 250μA
• Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V

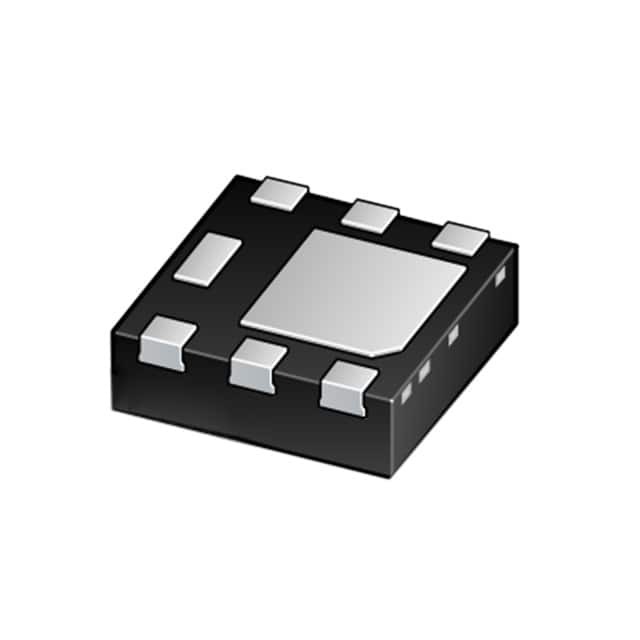

• Package: 6-UDFN exposed pad
• Temperature Range: -55°C to 150°C (TJ)
• Manufacturer: Nexperia USA Inc.
